2024 New Automatic Window Door Profiles Milling Machine Price Aluminum CNC Drilling Milling Machine Window Processing Machinery Industrial Machine

Product Description

Product Description

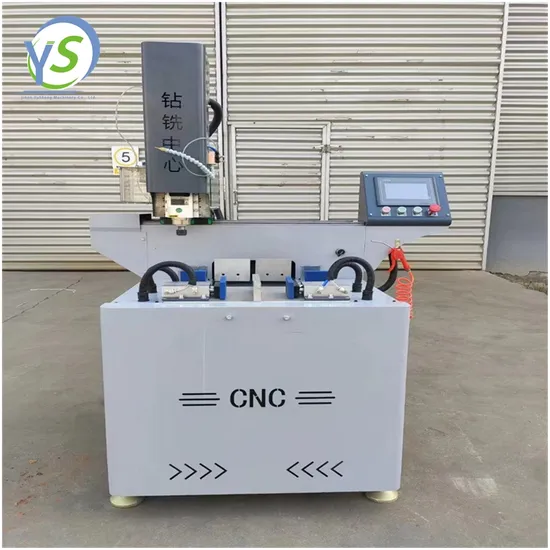

CNC High-Precision Aluminum UPVC/PVC Drilling Milling Machine
1.CNC drilling and milling machine is designed for processing round holes, slots, keyhole etc, also suitable for processing milling, chamfering, engraving plane surface and other procedure. This machine used for all kinds of minimalist glass doors, aluminum alloy sliding doors, flat doors, sliding doors, system doors and Windows, broken bridge aluminum doors and Windows and other kinds of home profile drilling and milling.
2.The worktable can overturn -90°~0°~+90°, clamping one time profile can realize three faces processing, When processing deeply hole (hetero type hole ), it can realize deeply hole processing through overturn worktable, so can highly improve pr
ocessing efficiency.
3.It can transform processing G code automatically, have the function of easy operation, high efficiency and lower labor intensity.
4.Main spindle adopt air-cooling electric main axis, 3kw power, O~18000r/ min , have the function of high precision, high safety and high reliable.
5.The drive is stable, so can improve the precision of whole machine.
6.Imported guide rail, sliding block, X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball screw drive.
7.Electric pump oil supply system is adopted, and spray cooling device controlled by system is adopted for cutting tools.
8.Adopting electric spindle and imported motor, with high precision, good safety, and high reliability.
9. Length can be customized.

Detailed Photos
Product Parameters

Model	CNC-1200
Voltage	380V 50HZ ( can be customized )
Power3	KW
Working pressure	0.6 ~ 0.8mpa
X Y Z Working Speed	0-10m/min
X Axis Travel	3000mm
Y Axis Travel	500mm
Z Axis Travel	380mm
Angle	180°-90°~0°~+90°
Dimensions	2300x1500x1950mm
Weight	1000 kg

Processing Flow Chart
Company Profile

Jinan Yusheng Machinery Co., Ltd. is dedicated to the cutting-edge technology of aluminum profiles, doors, windows, and curtain wall processing equipment, as well as the practical application of processing sites. It has a team of experienced and expert employees in the industry, equipped with a large mechanical processing workshop with complete functions. It is a high-tech enterprise that integrates research and development, production, sales, and service. Since its establishment, the company has been committed to the research and development of energy-saving door and window technology, providing complete assembly equipment for aluminum profiles, ordinary plastic steel profiles, and high-end aluminum insulated glass production lines to the industry. The products cover industries such as industrial aluminum profiles, door and window curtain walls, rail transit, aerospace, industrial manufacturing, and household appliances. The company relies on strong technical expertise, rigorous production and processing, and a complete range of equipment to meet the needs of different investment scales. It can also customize personalized products of different grades according to customer requirements.
Creating value for users is our commitment, taking responsibility for each product is our responsibility, and customer satisfaction is the ultimate goal of our services; Winning customer, employee, and social satisfaction is the driving force behind our progress.
With high-quality products and an efficient service team, Yusheng Machinery looks forward to providing you with high-quality products and services!
Certifications
Our clients
FAQ
Q: Are you a manufacturer or trading company?
A: We are the manufacturer and we have morethan10 years factory experience.As only the machine made by ourself,quality can be trusted,and most important thing is we can do better service after sales.we know how to fix the problem in each parts easily, so welcome to visit to our factory! Q: Our voltage is not 380V/50HZ, if can use the machines.
A: The voltage can be customized as clients' request. Q: How long is the delivery time?
A: For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days. 4. Q: How should I pay for my order? what is the procession of this purchase?
A: You can do 30% prepayment at first, then we will start to make production. when the machine is ready ,
we will take pictures to you, and then you can do the balance. after we got your payment. We will send the machine to you.
5. Q: How about your service after sales? Can your engineer speak fluent English?
A: We offer the service from you received the machine, including installation of the machine,
6. Q: How to use machine? how to let machine work?
A: Usually we will teach you how to do by email or by Whatsapp. Our engineer has many years of experience for CNC machine service. He can speak very good English, so he can solve the problem in short time.
7. Q: How about the documents after shipment?
A: After shipment,well send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by client.
Service
1). At least 1 year from the date of completion of the commissioning.
2). Free consultation service before, during, and after sales;
3). Free project planning and design services;
4). Free debugging of equipment until everything is functional;
5). Free management of equipments long distance shipping;
6). Free training of equipment maintenance and operating personally;
7). Provide 1 year complete warranty and life-time maintenance service;
