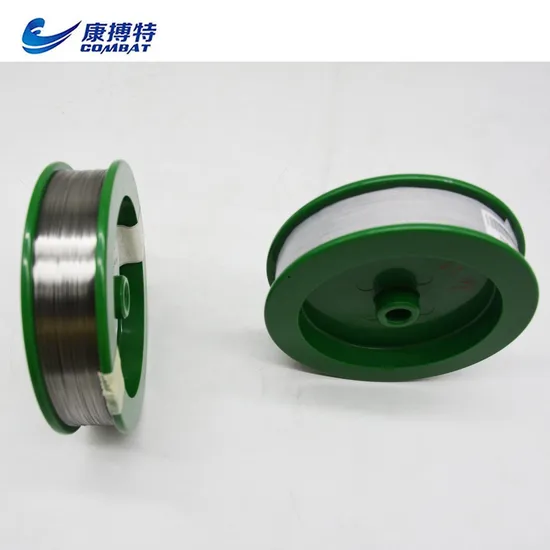

3 Strand 1.0mm Stranded Tungsten Wire for Vacuum Coating

Product Description

Product Description

Tungsten wire mainly used to make filaments of incandescent lamp, fluorescent lamps, and halogen lamps, electrode of HID lamps, heating components, vacuum metallizing coils, and TIG welding electrodes. At Hanz, we try our best to explore new products with high quality and has formed the capacity to manufacture series tungsten products, including all kinds of black tungsten wires and cleaned tungsten wires, tungsten filament, tungsten stranded wires, conductor wire, tungsten heater, doped tungsten wire, non-sag tungsten wire,tungsten rhenium wires etc.

Properties and Characteristics:
1.High temperature property: according to the specific applications, high temperature property requirements.
2.Diameter consistency. weight deviation of two consecutive 200mm-wire pieces is less than 0. 5% of nominal
3.Straightness:Regular tungsten wire in accordance with customers' requirements
Straightened tungsten wire. for the tungsten wire thinner than 100um. vertical height of 500mm freely,suspended wire should not be less than 450mm:for the tungsten wire at or thicker than 10oum, the maximum arc height between two points with distance of 100mm is 10mm
4.Surface conditions: smooth surface, free of splits, burrs, cracks, dents, dots. grease contamination.
Specification: 3 strand 0.8mm stranded tungsten wire for vacuum coating

Diameter, mm	Diameter telorance, %	Weight ( 200mm ), mg	Length min, m
0.012−0.06	-	>0.44−10.91	700
0.06−0.1	-	>10.91−30.30	400
0.1−0.15	--	>30.30−68.18	250
0.15−0.2	-	>68.18−121.20	150
0.2−0.35	-	>121.20−371.19	100
0.35−0.7	±1.5−±2.5	-	same as 150g
0.7−1.8 ±	±1.0−±2.0	-	same as 20

Chemical Composition: M 3 strand 0.8mm stranded tungsten wire for vacuum coating

Grade	W content min, %	Total impurity elements max, %	Each element max, %
W1	99.95	0.05	0.01
W2	99.92	0.08	0.01

Detailed Photos
Certifications
Packaging & Shipping

FAQ 1. who are we?We are based in Henan, China, start from 2008,sell to Domestic Market(94.00%),North America(3.00%),Eastern Asia(2.00%),Southeast Asia(00.00%). There are total about 51-100 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Tungsten Product,Molybdenum Product,Titanium Product,Tantalum Product,Niobium Product4. why should you buy from us not from other suppliers?We supply the source as tungsten and molybdenum powder. So the price for the final products can be much favorable.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,Express Delivery;Accepted Payment Currency:USD;Accepted Payment Type: T/T,L/C,PayPal;Language Spoken:English,Chinese,Japanese
