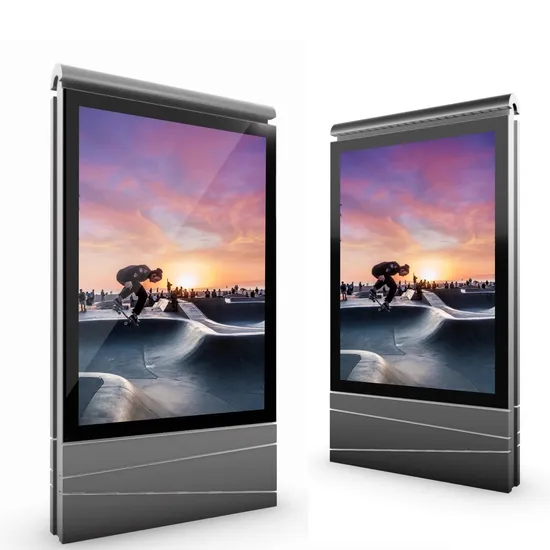

5500nits P3 Full Color Advertising Outdoor Digital LED Screen Totem for Street

Product Description

Floor standing weather proof 5500 nits sunlight readable P3 digital outdoor LED totem for urban city.
The star vision LED totem equipped With P3.0 high brightness LED screen, with high refresh rate. and IP65 weather resistant enclosure protected by IK10 rated tempered glass. and our smart temperature control system make our digital totem capable for all weather conditions.
The display can be provided as free standing or wall mount, pole mount. also provide one side LED screen, another side with LED backlit static poster, or 2 side LED screen
Main Features
· High quality P3 LED screen and LED backlit static poster on the other side.
· Both visible sizes are 1.15 meter x 1.71 meter.
· Water proof enclosure, welded aluminum profile covered with 6mm tempered glass on both side.
· Integrate smart cooling fan system.
· With easy poster system, allows our client to change poster easily.
Display
Outstanding Screen
Star vision SMD LED screen equipped with SMD1921 LED bulbs, provide up to 5500 nits brightness, and with 3840HZ high refresh rate. the SMD mupi LED offers excellent contrast, optimal light distributions and great viewing angles.
Enclosure
Robust and stylish
Display size(W*H): 1150mm*1710mm
The robust and stylish design enclosure is made by aluminum profile joined by welding, polishing and outdoor powder coating in any color as request. The enclosures are waterproof and also Anti corrosion. it can be used in any outdoor conditions for decades and still looks new.
Anti-vandalism
The screen is covered by 6mm clear tempered glass(IK10),with ceramic printing border. Customize backlit logo printing available, and its easy clean.
Smart cooling system
To enlarge the stability and lifetime of the LED screen, we built smart high-power cooling fan group inside the totem to keep the temperature in a suitable range, which can avoid the overheat inside the machine.
LED Display + Poster
LED illuminance for poster side up to 3000 lux, with 6500k comfortable color temperature. Both doors with gas spring support and hinges on the top, allows both front and back access maintenance of LED screen.
Easy Poster System
With our easy poster system equipped with poster clips on white acrylic diffuser with aluminum frame and stainless steel sliding rail. With the easy poster system, client can change a poster quickly and easily.
Mechanical Locking System
Our patented mechanical locking system which is reliable and user friendly, can be open only with special tools.
Content Management System

Smart control CMS
The smart control system (Nova contral system) allows client to control the content by PC and mobile. with the smart control system, clients can monitor the screens performance and condition remotely. Including temperature, power, displays. The Auto brightness control will automatically adjust the brightness according to the environment.
Specifications

Product dimensions(overall)	1350mm x 2675mm x 230mm
Visual size	1150mmX 1710mm
Mechanical construction	Welded powder coated extruded aluminum alloy body
	Galvanized zinc reinforcement plate and stand
Waterproof level	IP65
Pixel Pitch(mm)	3mm
Pixel Configuration	1R1G1B
Real Pixel Resolutions (Pixels/m2)	110889
LED encapsulation	SMD1921
Module size L*H(mm)	192 x 192mm
Module resolution(pixels)	64*64=4096DOTS
Physical cabinet resolution(pixels)	576*576
Module weight	600G
Best viewing distance	3m-7.5m
Viewing angle level	140°
Vertical	120°
Mean time between failures	>=5000 hours
Graphics card	DVI graphics card
Drive mode	1/16 scan
Maximum power	4380W
Average power consumption(w/pcs)	1680W
Refresh frequency	3840Hz
Grey scale (bit)	14bits
White balance brightness	5000 nits
Service	Back service
Operating system	Nova CMS
Video signal	RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION, etc
Control System	PCTV card (optional) + DVI graphics card + main control card + optical fiber transmission (optional)
Life span	75000-100000 hours
Available options	Side A with led screen,side B with static or scrolling poster

Production process
LED Screen Aging Test Before Assembling
Some of Our products
Packaging & Shipping
FAQ
1. What are the advantages of star vision's digital signage ?
With more than decade experience on the design and engineering of ooh and Dooh infrastructure, Star Vision provide our customer designs which are unique from the market to increase Dooh Media owners brands recognition.
2. How do we start?
Once client told us where to deploy the structure, we will propose several design with price for choices, and also we can make new design based on clients requirement, after confirm all the details, than we do the quotation, then we go for prototype, after get feedback or approval of the prototype, than we proceed the bulk orders.
3. Can I have my logo on the product?
Yes, customized logo service is available.
4. What about the payment terms?
30% in advanced, balance before shipment.
5. How do you pack the products?
Wooden case on pallet, which is easy to load and unload from the container, and protect the products well no matter by sea or by air.
6.How do you support us for use of the products?
We will send Installation drawing to client, and video call, phone services, email support are always available, and if necessary our engineer can visit client to guide how to install the products and train your team how to use our products, ticket, training and accommodations charges on client side.
7. What is the guarantee time?
The guarantee time is 1 year, and it can be extends to 3 years on extra charges, during guarantee period , we can repair or change defective components for client free of charge, however, delivery cost of sending components are on both side.
