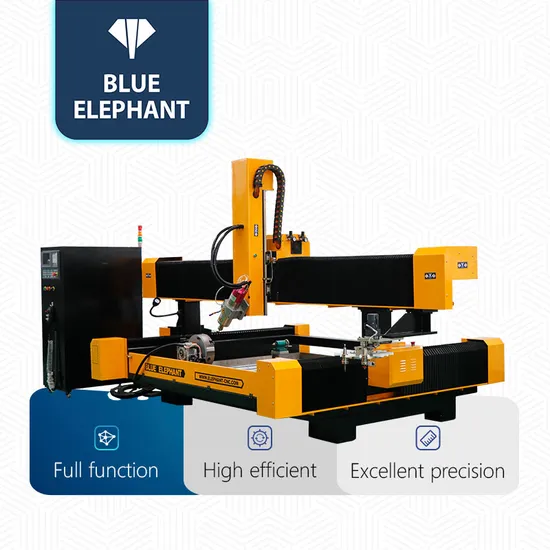

Best Selling Automatic Tool Change CNC Granite Stone Counter Router and Edge Polishing with Rotary Device

Product Description

Best Selling Automatic Tool Change cnc granite stone counter router and edge polishing with Rotary Device

Advantages
1) Machine table, parts etc under tempering process, increase machining accuracy and efficiency;
2) Strong power acquired by atc water cooling spindle 5.5kw, and customized sink work table is just right for stone, granite etc processing;
3) 8 tools Carousel magazines, changing tools automatically, working efficiency is much higher than manual tool changing;
4) Dust proof design on X and Y axis do you favor on machine maintenance;
5) Folding door humanized design on x axis protect operator safety and health;
6) Removable rotary device just for your option, in case that you need to process cylinder objects or 3d arts;
Technical parameters

Model	ELECNC-2113ATC-4
Color	According to your needs
Effective Working Area	2100*1300*600mm
Tool Magazine	8 tools Carousel magazines
Working Voltage	380V, 3Phase, 50Hz or option
Control system	Taiwan SYNTEC 6MB control system with 1.8m control box
Spindle	5.5kw Chang sheng ATC water cooling spindle,18000rpm. The spindle can rotate 180,from -90 to 90
Inverter	5.5kw Fuling inverter
Motor & Driver	850w Japan YASKAWA servo motor and 1kw servo driver with 3 pieces Japan Shimpo Reducer
Lubrication System	Auto Lubrication System
Gantry Structure	Gantry Moving
Table Surface	T-slot work table with water tank; Sink work table
Transmission	Taiwan ABBA/ PMI/ HIWIN square linear guide,#30 Taiwan TBI ball screw for Z axis Helical rack gear transmission for X,Y axis
Tool Sensor	Auto tool sensor calibration
Water mist cooling system	Water mist cooling spray
Structure	Heavy duty stone machine body
Features	Folding door on X axis; Removable Rotary device with YASKAWA servo motor and driver: diameter 300mm,length 1300mm;

Product details
Application
Stone serious engraving machine is mainly used in the engraving of the hard materials.
Such as marble, grantie, glass, stone,etc.
Samples

Packaging & Delivery
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 20 working days after payment.
Customers feedback
Our service
1.Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2. Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3. Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4.We offer 24 hours technical support by call, and email.
5.Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6.We can record videos of operating the laser machine.
7.Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
Our factory

Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine. We have our R & D department, Quality control department, and after sale & service department. Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on. We had got CE and ISO9001 certification always offer best quality machine. Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!
