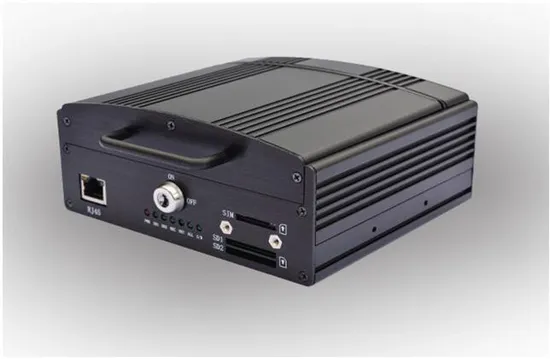

Bus 4 Channels HD Mobile Network Video Recorder

Product Description

Descriptions

SHJ-HD-5004 Series is a HD high level hard disk +2pcs SD Card mobile digital video recorder specially designed for vehicle surveillance purpose. It using the latest international technology to creat 1080P resolution for mobile security video record field. Supply very good quality picture to show the details more clearly. Support 4 channel real time 1080P video and 4 channel audio recording, or support 2ch real time 1080P AV +6ch 720P AV as 8ch HD record solution (or 8ch not real time 1080P AV).

Key Features

Embedded operating system, assuring reliability and system integrity; Records up to 4ch /8ch of full-motion color video with corresponding audio tracks; H.264 High Profile video compression; Total Record resource up to 120@1080P frame/second; Lockable security enclosure; 1080P resolution for each channel, which means each channel support 1920x1080 @30fps; Support 4 channel real time 1080P video and 4 channel audio recording, or support 2ch real time 1080P AV +6ch 720P AV as 8ch HD record solution; Real time live HD video and audio through WiFi/RJ45 to show on windows system; Recorded HD video and audio real time playback through WiFi/RJ45; Synchronize the DVR system time with GPS automatically; Reliable power management, wide voltage: +8V~+36VDC; Applicable for vehicles with +12V or +24V battery; The recorder provides each camera with stable +12V DC power; DVR can detect the short cut on power circuit; Can use ignition to control the power; Support schedule recording; Support alarm recording; Record vehicle speed and car id with video; Support 6 sensors, can be connected to speed, ignition, brake, return, right turn, left turn light etc; Recorded G-Sensor Values can provide reference of data analyzing when accidence happened; Combined Recording can be triggered when G-Sensor values go beyond threshold; Support SDHC card within 32GByte,more than 64GByte (Maxim 2048GByte); Support hot-plug when the DVR system is not recording or remote-operation(remote copying or playing back); Support IOS/Android Phone Remote monitor

Application

Bus, School bus, Logistics vehicle, Taxi, Police car, Special purpose vehicle, Train/metro, Ship/boat

Specifications

Model		WL-HD-5004
System	Operating System	Linux 2.6
	Operator Interface	English / Simplified Chinese/other language can be ordered
	Storage	H01 support HDD storagy, S01 support 2pcs SD Card storagy (up to 128GB)
	Video System	H.264 Main/High Profile, HD 1080p@30/720p@30/540p@30 Recording for each channel
	Voltage Input / Output	Input: 8 V ~ 36 V DC, Output: 12V/1.5A
Video	Video Input	4 x 1080p/720p ;2 x 1080p+6 x 720p camera inputs
	Video output	PC / WIN8 Tablet , iPhone/ Android Phone for network remotely monitor
	Preview	1 image / 4 images / 8 images
	Standard Stream	ISO 14496-10
	Recording Resolution	Selectable (1920x1080, 1280x720, 640x480)
	Recording	Supports normal, schedule, alarm recording and continuous
	Video Compression	H.264 (High profile up to level 4.1)
	Max fps (total)	120fps@1080p
Audio	Audio Input	4ch or 8ch input
	Audio compression	AAC (16bit, 48KHz)
Interface I/O	LAN	1(RJ-45) 10M / 100M Ethernet port
	USB	Supports USB 2.0 for U-Disk recording
	Serial	RS-232×1
Network	WiFi	Build in 802.11b/g/n AP, speed up to 300Mbps
	Protocolo	TCP / IP
	Communication	4G/3G/EDGE/GPRS/CDMA
Alarm & Sensor	Inputs	6 Alarm I/O input, 1 speed, 1 ignition, 1 G-Sensor
	Outputs	1 ch output
Power Supply	Ignition key	Recording starts when ignition is on, stops with delay time when ignition is off.
	Power Consumption	Less than 5.0W (with SD and without providing power for the cameras)
Physical Characters	Dimension	123.0mm x 142.0mm x 36.2mm(double SD model)/123.0mm x 142.0mm x 60.2mm(HDD model)
	Weight	0.56KG(double SD model)/1.08kg(HDD model)
Others	Backup	By WiFi (300Mbps, Actual download speed up to 150Mbps)
	Clock	Internal, permanent calendar, Time sync from GPS (if available)
	GPS	GPS/GLONASS module external
	Function Dual Streaming	Allows you to configure the frame rate of different transmission frame rate recording and bandwidth control
	Self-protection	Protection against overload, short circuit and short time reverse polarity
	Reset	Option to return to factory default setting
	SD memory	Support SD card x 2 (SD model)
	LED's	Indicates Power, RUN, Alarm, Recording status, network
	Method of writing and reading of data	Overwrite ON/OFF selectable
	Synchronization time	GPS Time Synch / Time Synch via networking
Environment	Operating Temperature	-30 ~ 60°C
	Relative humidity	5% - 95%
	Vibration resistance	< 3 Grms
	Resistance to mechanical shock	< 1200 Grms
Embedded Software	Config. FPS per channel	allows (1~30fps)
	ID records vehicle license plate	allows
	USB	Record
	Rename channels	allows
	Time	Settings day,hour, minute
	Image Playback	Includes date and time, latitude and longitude, vehicle speed, and vehicle ID and channel number
	Playback Speed	Speed forward 1x ~ 16x
