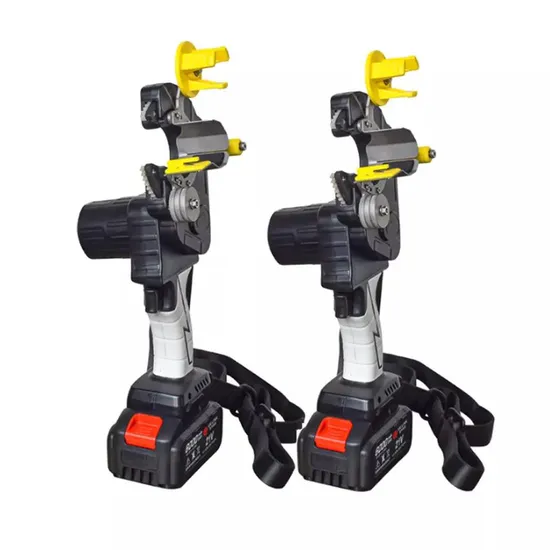

Handheld Wire Harness Tape Wrapping Machine with Battery

Product Description

Handheld Chargeable Wire Harness Tape Winding MachineIt can wrap various wire and tube with tape, and is suitable for new energy wire harness processing industry equipment such as automobiles, aviation, home appliances, machinery, electronics, and wire harnesses.

Specification:

Model	SR-303B
Wire Diameter	3-35mm
Winding length	Unlimited, manual control
Tape type	PVC / velvet / acetic acid tape (without release paper), etc.
The inner hole of tape reel	Standard 38mm (Please inform the size in advance)
Applicable tape size	Width 10-25mm, outer diameter less 110mm.
Power supply	AC 220V 50HZ
Size	110*160*360mm
Lithium battery	6000mAH (can use about 5-6 hours)
Weight of machine and battery	About 1.6KG
Winding speed	150-500rpm adjustable

Features:

1. Good effect, high speed.
2. Winding laps adjustable.
3. The distance and overlap of the tape can be adjusted to reduce waste, and the tape automatically jumps to the next position. No additional process is required to prepare for the next step.
4. Can add the base, use the machine as a desktop type.

Pictures:

Contact:

FAQ:

1 Price terms
The price is based on EWX/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you CFR price or CIF price for reference.
2 Can I send samples to check the machine quality.
Yes, welcome to send us samples. We would be pleased to show you trial testing base on your samples.
3 How to learn the machine?
1) Offer free technology learning support in our factory
2) Provide detail user manual with detail video illustration
3) Support engineer service at site if clients asking for
4 How about the lead time and delivery time of order?
Standard model, can be ship out within 3~7days after confirmed order and deposit.
Customized model, normally lead time is 10~30 days, after confirmed all order detail deposit and got samples.

Company info:

Sinrad Technology Co.,Ltd, specialized in automation machine, customizing and manufacturing cable processing(cutting, striping, twisting, crimping, soldering, housing inserting, winding, binding, testing, etc.) machine, automatic soldering machine, intelligent soldering machine, and other production equipment.
