Rigid Watch Packing Machine Factory Zk-6421

Product Description

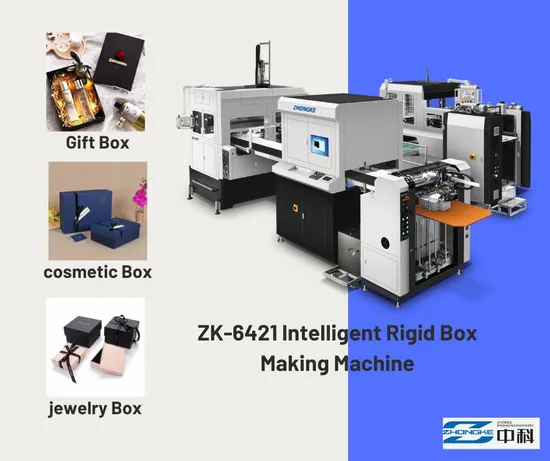

ZK-6421 automatic intelligent box machine
The equipment adopts motion controller, visual manipulator for positioning and human-machine interface intelligent system to realize intelligent operations, digital adjustment and parameterized setting of functions, which make it possible that paper feeding, gluing, cardboard four corners taping, feeding, edge covering, full ear folding, forming and shaping of the finished box are completed in one operation. So it is applicable to the production of high-end rigid boxes, such as business package boxes for electronic products, mobile phone boxes, jewelry boxes, gift boxes, cosmetics boxes and so on.
Features and standard configuration of ZK-6421
1 Applicable for the production of various rigid boxes;
2 Automatically sucking covering paper and feeding grey board;
3 Visually positioning and manipulator capture system (positioning error ±0.05mm)
4 Automatic box lifting and guiding device;
5 Using servo motion control, the entire machine is intelligentized to realize the digital adjustment and parameterized setting of functions;
6 24-hour control of glue preheating;
7 Sensor is provided for troubleshooting;
8 Glue viscosity automatic control system (optional).
9 Unique function of automatic box height adjustment, improving the production efficiency.
Specifications

Function mode selection
Box size
	L	max	600mm
	L	min	80mm
	W	max	400mm
	W	min	50mm
	H	max	210mm
	H	min	15mm
Turn in depth
	R	max	100mm
	R	min	15mm
cover paper requirement
	A	max	850mm
	A	min	130mm
	B	max	670mm
	B	min	100mm
Paper wrap Size	g/m2		100g/m2-350g/m2
Cardboard thickness	mm		1mm-3mm
Speed	pcs/min		15-35 pcs/min
Ear folding	mm		15-120
Precision Error			±0.05mm
Paper pile height			700mm
Cardboard pile height			1000mm
Power supply			38V 50Hz
Electrical power			36KW
Glue tank capacity			45L
Air supply			12L/min
Net weight			8800KG
overall dimension			7100mm×4400mm×3800mm

Rigid Box Type
Workshop:
Zhongke Packaging Machinery Co., Ltd. was established in 2002. It is the first leading enterprise in China to independently develop and create a series of automatic rigid box making machines. Founded the two major brands of "ZHONGKE" and "HEWANG Box King"The company took the lead of this industry in passing the international quality system ISO9001 certification, environmental protection system ISO14001 certification, Safety system ISO18000 certification, EU CE safety system certification, intellectual property management system GB/T29490-2013 certification.zhongke covering an area of 100,000. It is a private economic entity integrating independent research and development, design, production, sales and service. On the basis of drawing on the advanced technology of similar foreign products.
After 20 years of development, the company has established perfect sales network and integrated after-sale service system at domestic and abroad, which enables the company to provide timely, accurate and efficient services, and won good customer reputations. The products are sold all over in China and exported to more than 60 countries and regions such as Europe, America, Southeast Asia, South America, Middle East and Africa. The production, sales volume and scale are all ranked first in the same industry
