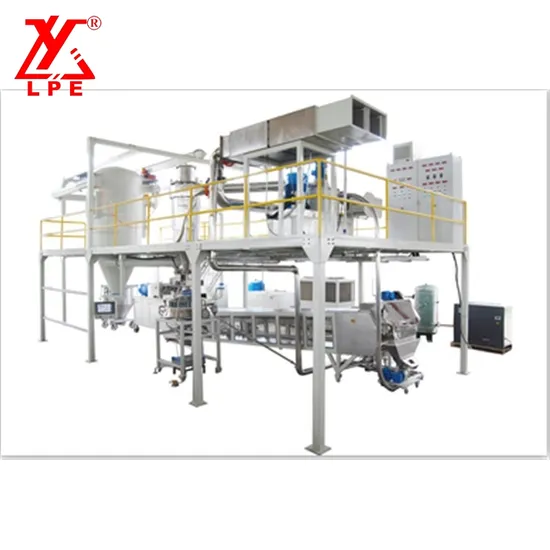

Grinding System / Mill / Acm for Powder Coating

Product Description

500-600 Kg/Hr Powder Coating Mill Grinding Machinery
LYF SERIES GRINDING SYSTEM
This series of grinding system has functions of high-speed crushing, air classifiering , double cyclone separating, screening, and fine powder collecting, etc., with noise ≤80DB. Best particle size distribution with particle size which can be adjusted freely from 18-60um. This series grinding system has good ATEX anti-explosion design and performance, which has been evaluated by international authorized orgnizations.
Features of 500-600 Kg/Hr Powder Coating Mill Grinding Machinery:
1. Low noise
2. Adjustable particle size distribution
3. High output
4. Temperature monitoring of mill chamber
5. High recovery, ≥ 98%
6. Easy for cleaning and maintenance
7. In accordance with the standard of European ATEX anti-explosion design
8. Safe to operate
9. Accurate weighting system for the finished powder coating.

Main Technical Parameter of 500-600 Kg/Hr Powder Coating Mill Grinding Machinery:

Model	Output (Kg/h)	Mill Speed (rpm)	Motor Power (kW)	Classifier Motor (kW)	Fan Power (kW)	Dimension (mm)
LYF-10	150-200	7000	7.5	1.5	7.5	6000*2000*2200
LYF-20	250-350	6000	15	3	18.5	7000*2800*3000
LYF-30	350-500	5600	18.5	4	22	8000*2800*3000
LYF-45	500-600	5600	22	4	37	9000*3500*3500
LYF-60	800-1200	4800	37	5.5	55	10000*3500*3500
LYF-70	1000-1500	4800	37	5.5	75	11000*3500*3500

Details of 500-600 Kg/Hr Powder Coating Mill Grinding Machinery:
1. The main mill disc with pins have passed the testing through the balance measuring instrument. This design can reduce the noise and attrition.
2. The silencer on the end of the fan can reduce the noise effectively.
Company Profile
Company Introduction
Lingyu Powder Machinery Co., Ltd, established in 1999, is specialized in researching and manufacturing of powder coating processing equipment, with strong technical strength and abundant practical experience. Now we have hundreds of different machine models and get certifficates of CE approved by TUV Cermany, ATEX by Sira England and PSR11 by ECM Italy.
Following the principle of "Quality first, Credit first and customer first", we are able to provide commissioning and installation support, formulation guidance and 24-hour aftersale service, which help us win great trust and support from customers.
Now Lingyu has become a well-know manufacturer for powder coating processing equipment both at home and abroad, with No. 1 market share. Products have been successfully exported to 50 countries and regions. Friendly business relationship with many world famous powder coating manufaturers has been established and kept in long-term.
We sincerely welcome you to our company for business visit and technical communication. Together with our sister company-Longcai Advanced Materials, mainly specialized in powder coating resins, we'll try our best to provide the best solution of powder coatings to our customers.
Exhibition

Packaging & Shipping

FAQ

Are you a factory or trading company?
BOGDA:We are a factory.
Can we visit your machine operation in your factory?
BOGDA:You can see machine operation in our factory.
Can the machine be customized?
BOGDA:Yes,it can.
How many electric, water, air need for the machines?
BOGDA: technical department supply the whole layout for workshop details.
Can I operate machine if don't have experienced engineers?
BOGDA: (1) short-time engineers to customer company (5-15days)
(2) Year-time working as requirements
Any quality checking before shipment?
BOGDA: 100% confirm, run and test machines before shipment with quality certificate.
How long is the guarantee?
BOGDA: 12 months since the first day customer operates (except wear parts)
How can u help us when face some technical problem?
BOGDA: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
