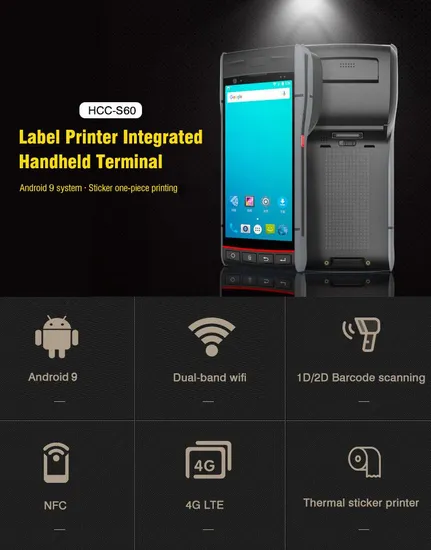

5.5 Inch 2GB+16GB PDA Barcode Scanner Mobile Android 9.0 Handheld Terminal for Inventory System (HCC-S60)

Product Description

5.5 Inch 2GB+16GB PDA Barcode Scanner Mobile Android 9.0 Handheld Terminal for Inventory System (HCC-S60)
Product Description Features
Android 9.0 system Sticker one-piece printing 5.5-inch HD Durable large Display
Specifications

Performance
CPU	Cortex-A53 Quad-core 64-bit 2.0GHz high-performance processor
RAM+ROM	2GB+16GB Supports up to 3GB+32GB
Expand memory	Micro SD(TF) Supports up to 128GB
System	Android 9.0
Data communication
WLAN	Dual-band 2.4GHz / 5GHz, Supporting IEEE 802 a/b/g/n/ac protocol
WWAN	2G: GSM (850/900/1800/1900mhz)
	3G: WCDMA (850/900/1900/2100mhz)
	4G: FDD:B1/B3/B4/B7/B8/B12/B20
	TDD:B38/B39/B40/B41
Bluetooth	Support Bluetooth 2.1+EDR/3.0+HS/4.1+HS Transmission distance 5-10 meters
GNSS	Support Gps, Galileo, Glonass, Beidou
Data collection
Barcode scanning (Optional)
2D Imager scanner	Newland EM3090 Honeywell N3603 Honeywell N6603
2D Symbologies	PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix, QR Code,Micro QR Code,Maxicode,Hanxin Code,etc.
Thermal sticker printer
Printing speed	70mm/s
Print points	384 dots
Paper width	58mm
Paper diameter	35mm
Paper type	Support for Sticker / label Black mark printing
Camera
Rear camera	13MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting
Front camera	2MP color camera
NFC (optional)
Frequency	13.56MHz
Protocol	Support ISO14443A/B, 15693 agreement
Distance	2cm-5cm
Language/input method
Input	English, Pinyin, Five strokes, Handwriting input, Support soft keypad
Language	Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysian,etc.
Physical parameter
Dimensions	177mm×72mm×(23.7-48.8)mm
Weight	<500g (Depends on device function configuration)
Display	5.5 inch IPS color display with resolution 720*1440
TP	Corning gorilla glass, Supports multi-touch Supported gloves and wet hands
Battery capacity	Rechargeable polymer battery (3.8V 5200mAh) removable
	Standby time >350 hours
	Working time > 12 hours
	Charging time 3-4H, Using standard power adapter and data cable
Expansion Card slot	PSAM x 2, Nano SIM card x 1 , TF card × 1
Communication interface	Type-C USB x 1, OTG
Audio	Speaker (mono), Microphone, Earpiece
Keypad	Silicone button: Power button, Volume +/- button, Scan button × 2
Sensors	Gravity sensor, Light sensor, Proximity sensor, Vibration motor
User environment
Operating temperature	-20ºC - 55ºC
Storage temperature	-40ºC - 70ºC
Environment humidity	5%RH--95%RH(no condensation)
Drop specification	6 sides Supports 1.2 meters drops and 30 times to the concrete within the operating temperature
Rolling test	500×0.5m rolling for 6 sides
Sealing	IP54
Accessories
Standard	Adapter, Data cable, Protective film, Instruction manual

Detailed Photos
FAQ 1. Are you manufacturer?
Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for Eight years. We can provide OEM / ODM customized service according to our customers' various application and demands.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C Secure payment and so on.
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, theleading time will be 1-4 weeks depend on exact quantity.
8.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.
9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
