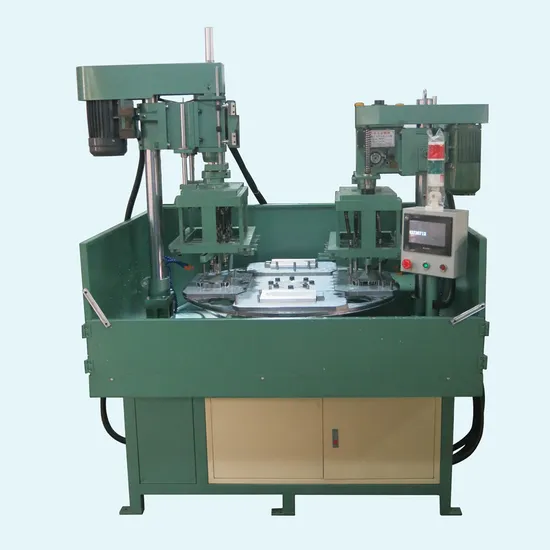

Non-Standard Customized Pneumatic Thread Vertical Drilling Tapping Chamfering Machine
Basic Info.
Controlling Mode
CNC
Number of Shaft
Customized
Hole Diameter
35mm/Customized
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Auto Non-Standard Drilling Tapping Machine
Machine Type
Vertical Bench Table Type Drilling Machine
Application
Make Holes & Tapping on Metals
Warranty
One Year Warranty
Max Drilling Diameter
1-35mm
Advantage 1
Automatic
Advantage 2
High Accuracy
Advantage 3
High Quality
Spindle Travel
130mm
Base Size
420*600mm
Brand
Chansin
Transport Package
Plywood Case
Specification
70x96x199cm
Trademark
Trade Mark
Origin
Dongguan, Guangdong, China
HS Code
8459700000
Production Capacity
80 Sets Per Month
Product Description
Product DescriptionNon-standard Customized Pneumatic Thread Vertical Drilling Tapping Chamfering Machine
| Model | CX-15035 |
| Max Drilling Diameter | 35mm |
| Spindle Travel | 150mm |
| Distance from Spindle Center to Column | 230mm |
| Distance from Spindle Nose to Working Table | 425mm |
| Spindle Taper | MT4 inner cone or slotted drives |
| Spindle Rotation Range | 800/1400/2000rpm |
| Working Pressure | 25-30kg/cm2 |
| Base Size | 420*600mm |
| Total Height | 1050mm/1850mm |
| Motor Power | 2.2kw |
| Cooling Pump Motor Power | 45-90w |
| Weight | 320-500kg |
Standard Type Drilling Machine
| Drilling Machine | CX-8510 | CX-13016 | CX-15035 |
| Maximum Drilling Diameter | 10mm | 16mm | 35mm |
| Electricity | 380V/415/440V 3 Phase | 380V/415/440V 3 Phase | 380V/415/440V 3 Phase |
| Spindle to Column Distance | 200mm | 210mm | 250m |
| Spindle Nose to Work Table | 100-330mm | 100-350mm | 120-420mm |
| Spindle Speed | 1400/2800 rpm | 1400/2000 rpm | 1000/1400 rpm |
| Machine Head Travel | 280mm | 280mm | 320mm |
| Motor Power | 0.75kw | 1.5kw | 2.2kw |
Standard Type Tapping Machine
| Tapping Machine | CX-4508 | CX-6516 | CX-6516 |
| Tapping Range | 1-8mm | 2-16mm | 5-32mm |
| Machine Head Travel | 260mm | 300mm | 460mm |
| Spindle Nose to Work Table | 90-350mm | 100-350mm | 100-600mm |
| Multi spindle Capacity | M2*16,M3*9,M4*5,M5*3,M6*2,M8*1 | M4*13,M5*10,M6*7,M8*4,M10*3,M12*2,M16*1 | M8*16,M10*10,M12*7,M14*6,M16*4,M18*3,M20*3,M32*1 |
| Motor Power | 0.75kw | 1.5kw | 2.2kw |
| Electricity | 380V/415/440V 3 Phase | 380V/415/440V 3 Phase | 380V/415/440V 3 Phase |
| Spindle Stroke | 45mm | 65mm | 65mm |
Drilling and Tapping Heads
| CX-HD5-85 AIR/HYDRAULIC DRILLING HEAD | Maximum Drilling φ1-φ10mm Main Spindle Taper ER20/JT6 Main Spindle Travel 85mm Spindle Max Rotating Speed 1400 (r/min) Cylinder Area 21.6m2 Center Height 70±0.01 Motor 0.75KW Net Weight 38kg Using Hydraulic 20-30 kg/cm2 Size(L*W*H) 115*464*370mm |
| CX-HD6-130 HYDRAULIC DRILLING HEAD | Maximum Drilling φ1-φ16 mmMain Spindle Taper ER25/JT6Main Spindle Travel 130mmSpindle Max Rotating Speed 1400 (r/min)Cylinder Area forward 37.1m2 backward 15.8m2Center Height 70±0.01Motor 1.5KWNet Weight 50kgUsing Hydraulic 20-30 kg/cm2Size(L*W*H) 160*719*417mm |
| CX-HD8-150 HYDRAULIC DRILLING HEAD | Maximum Drilling φ1-φ35mmMain Spindle Taper MT4/LINE GROOVEMain Spindle Travel 150mmSpindle Max Rotating Speed 1500 (r/min)Cylinder Area forward 71.2m2 backward 31.4m2Center Height 90±0.01Motor 1.5KWNet Weight 67kgUsing Hydraulic 20-30 kg/cm2Size(L*W*H) 280*860*470mm |
Non-standard Drilling & Tapping Machine
Detailed Photos
Company Profile
FAQ
1. Are you a manufacturer or trade company?
-- We are a manufacturer.2. What is payment terms?
-- 30% deposit, the balance will be paid before delivery.3. What is the warranty time ?
-- One year warranty and life time maintenance.4. Do you provide OEM service?
-- Yes,we provide OEM service.5. Can you send engineers to serve overseas ?
-- Yes, we can, but you are responsible for round-trip air tickets and accommodation of our engineers.6. What is the loading port ?
-- Shenzhen / Guangzhou port in China.
