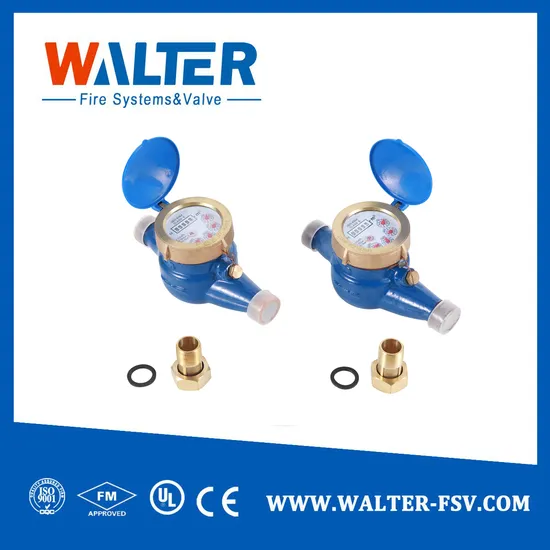

Ductile Iron Multi Jet Dry Type Water Meter
| US$8.80 | 200 Pieces (MOQ) |
Basic Info.
Model NO.
LSXG
Medium Temperature
Cold Water
Level Measurement
B
Counter Instructions
Digital
Nominal Diameter
15-50mm
Application
Industrial
Principle
Volumetric Meter
Medium Pressure
General Water Meter
Work Environment
Dry Water Meter
Stucture
Traditional
Body
Cast Iron or Brass
Size
Dn15-50
Connection
Threaded or flanged
Water temperature
T30 T50 T90
Transport Package
Carton Box
Specification
DN15-20
Trademark
Walter
Origin
Suzhou, Jiangsu
HS Code
9028201000
Production Capacity
100000PCS/Month
Product Description
DESCRIPTIONS:Multi jet, Dry-dial, wet dial and liquid sealed for option
Material body:Cast gray iron or ductile iron for option
Szes Ø15 to 50mm, (½" - 2"), Available for cold water
Measuring accuracy conform to ISO 4064 class B Standard
Universal use.Easy for interchange & maintenance
| Meter size Dia DN (mm) | Class | qs Overload Flow | qs Nominal Flow | qs Transitional Flow | Qmin Min Flow | Min Reading Lectura | Max Reading Lectura |
| m3/h | 1/h | m3 | |||||
| 15 | A | 3 | 1.5 | 150 | 60 | 0.0001 | 99999 |
| B | 120 | 30 | |||||
| 20 | A | 5 | 2.5 | 250 | 100 | 0.0001 | 99999 |
| B | 200 | 50 | |||||
| 25 | A | 7 | 3.5 | 350 | 140 | 0.0001 | 99999 |
| B | 280 | 70 | |||||
| 32 | A | 12 | 6.0 | 600 | 240 | 0.0001 | 99999 |
| B | 480 | 120 | |||||
| 40 | A | 20 | 10 | 1000 | 400 | 0.001 | 99999 |
| B | 800 | 200 | |||||
| 50 | A | 30 | 15 | 4500 | 1200 | 0.001 | 99999 |
| B | 3000 | 450 | |||||
At low zone is ±5% from minimum flow rate (qmin) to
transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to
overload flow rate (qs)
