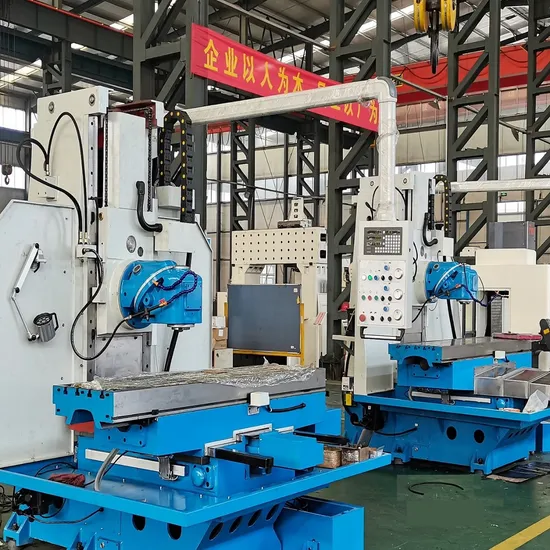

X715 Various Speed Ball Screw High Precision Dro Large Table Long Travel Heavy Load Duty Vertical Horizontal Universal Bed Type Metalworking Milling Machine

Product Description

X715 Various Speed Ball Screw High Precision DRO Large Table Long Travel Heavy Load Duty Vertical Horizontal Universal Bed Type Metalworking Milling Machine
Product Description
√ bed type milling machine
√ high rigidity machine structure for 2000kg heavy load capacity
√ mill head can swivel 360°, ensures vertical & horizontal milling mode
√ stepless spindle speeds in high and low 2 range, for both high-speed-fine-milling and low-speed-powerful-milling
√ brief design control panel, easy to operate
√ equipped with E-handwheels on control panel, ensures 3-axis easy & precise manual feeding
√ X/Y/Z 3-axis ball screws for good precision
√ X/Y/Z 3-axis driven by 3 independent servo motors, can achieve 3-axis synchronous feeding
√ electric cabinet is designed as part of machine body, space saving and good appearance
√ equipped with automatic centralized lubrication system
√ equipped with coolant system


Product Parameters

Items	X715	X716
Working area
Table size	2100x500mm	2500x600mm
T-slot (width x No. x pitch)	20mmx4x100mm	20mmx5x100mm
Max. load of table	2000kg
Distance from spindle nose to table surface	0-650mm	0-700mm
Distance from spindle axis and table surface	8-660mm
Distance between spindle axis and column guideway	610mm	8-660mm
Travel
Longitudinal travel of X axis	1500mm	1800mm
Cross travel of Y axis	650mm	700mm
Spindle
Spindle taper	7:24 ISO50
Spindle speed	(2steps) 6-300r/min, 30-1500r/min
Main motor power	11kW
Feed
Table feed-X/Y	2.5-3000mm/min
Table feed-Z	2.5-2500mm/min
Table rapid feed X/Y/Z	6000/6000/3000mm/min
Others
Coolant motor	90W
Overall dimension	3220x2420x2800mm	4380x2520x2800mm
Net weight	7300kg	9000kg

Standard Configuration

No.	Item	Specification
1	lubrication system	-
2	water cooling system with spray nozzle	-
3	LED work lamp	-
4	supporting frame for horizontal milling	-
5	draw bar	-
6	milling chuck set	ISO50: 2, 3, 4, 5, 6, 8, 10, 12mm
7	reducer sleeve	ISO50/MS4
8	milling cutter shank	ISO50-Φ40
9	tools & metallic tool box

Optional Configuration
Certifications
products are strictly according to Europe standard, with CE certificate

Packaging & Shipping
Packing type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet)
Delivery time: generally 60 days production time after the confirmation of order

Company Hot Products Link

FAQ
1. What is the MOQ ?
Minimum order quantity is 1 set.
2. What is the payment term ?
Usually we prefer T/T. 30% deposit, 70% balance payment against machine ready to delivery photos and videos.
Other payment terms are also acceptable after discussion.
3. What is the trade terms ?
Usually is FOB.
Others like CIF, CFR, EXW...... are also acceptable.
4. How long is the guarantee ?
12 month after machine's delivery from factory.
Within warranty, we guarantee spare parts free of charge and online supports for installation, operation, maintance and trouble shooting etc.
5. What kinds of machines do you supply?
Company specialized in producing CNC & conventional manual milling machines. Include:
CNC gantry machining center
Vertical machining center
Simple NC milling machine
Conventional manual milling machines (Vertical, Horizontal, Universal, Turret mill, Swivel head mill, Power sliding ram type, Bed type, Tool milling machine, Gantry type etc.)
5. How can I believe your company ?
XILI Machine Tool has more than 20 years milling machine production history, covers an area of about 50000 square meters, with 20 million CNY fixed assets and more than 200 employees.
Xili Machine Co., Ltd. is a ISO9001 company, all products are with CE certificate.
Welcome your inquiry and visiting.
