Universal Type Solar Panel Evaporator for Solar

Product Description

Solar Water Heater Pump Thermodynamic Solar Panel

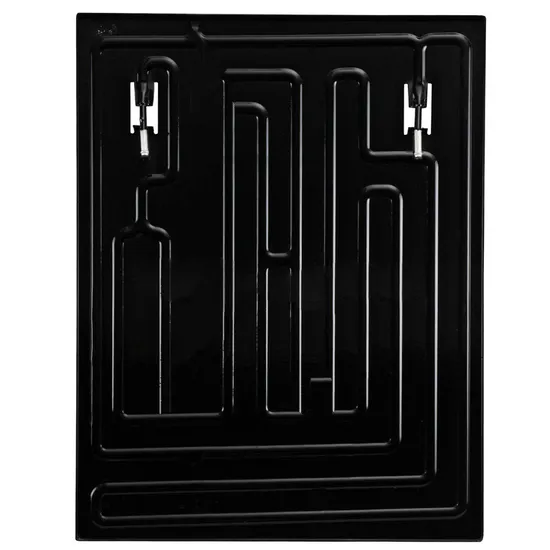

Rolld Bond Thermodynamic Solar Panel
Thermodynamic Solar Panel , solar panel, Rolld Bond Solar Panel
Thermodynamic solar panel single side inflated panel in China
Material: Aluminum 1060/1050
Roll Bond Thermodynamic Solar Panel for Hot Water Heat Pump
Roll Bond Thermodynamic Solar Panel , Hot Water Heat Pump , heat pump
Solar Energy Roll Bond Thermodynamic Solar Panel, Solar Energy ,Roll Bond Thermodynamic Solar Panel, Solar Water Heater Roll Bond Thermodynamic Solar Panel, Solar Water Heater ,
Solar Water Heater Roll Bond Panel, Roll Bond Thermodynamic Solar Panel
Water Heat Pump Roll Bond Thermodynamic Solar Panel
Hot Water Heat Pump Thermodynamic Solar Panel, Solar Hot Water Heater Thermodynamic Solar Panel,Solar Hot Water Heater Thermodynamic Solar Panel,
Hot Water Heat Pump Thermodynamic Solar Panel , Solar Water Heater Pump Solar Panel, Solar Water Heater Pump Solar Panel.
Dimension:
1700X800 2000X800 2000X1000 1700X500 1700X900 1700X990 and many sizes
Thickness range: 1.5mm-2.0mm
Black painting
Punching
Bending
Key process: Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing
Technical standard:
1) Size: Width 1100mm (max), length 2200mm (max)
2) Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator.
PS: If you don't need to paint, the lead time will be earlier!
Thermodynamic panels can absorb ambient heat from the air and rain as well as the sun.
They use refrigerant gas which works like a fridge in reverse to generate hot water for your home in all conditions.
How do thermodynamic panels work?
A thermodynamic panel is fitted to the outside of the property, usually on a south facing wall or roof. Refrigerant enters the panel at -22° C and is heated by the air around the panel until it becomes a gas. This heat can come from the air, sun or rain as long as the outside temperature is above -22° C. The gas then passes through a compressor which increases the temperature. The heat is released into the water tank through a heat exchange coil to a maximum temperature of 55° C. The cooler refrigerant then circulates back to the panel to be warmed again. The system uses a small amount of electricity to run but mostly relies on the ambient heat outside. For every unit of electricity used, the system will generate 3 - 6 units of heat for your home.
What are the benefits of thermodynamics?
A thermodynamic panel is a great alternative to solar panels they don't need light to generate heat for your domestic hot water.
Thermodynamic panels:
Don't need sunlight to generate heat, they work day or night and in all conditions including rain or snow.
Will provide all hot water requirements up to 55° C
Will significantly reduce CO2 emissions, making your home greener
Are smaller and more discreet than solar panels and do not need to be roof mounted
Require very little installation time, they can be installed in just a few hours.
JInan Retek Industries Inc. /Jinan Bestar Inc. Is a professional refrigeration supplier in China, now we have two factories manufacturing different kinds of refrigeration parts. One is mainly manufacturing condensers and evaporators. The other one is mainly manufacturing filter driers, accumulators and access valves. Our factories are carrying out ISO standard, and we already got Rohs certificate for these products.
With the idea of "Best Products, Best Price and Best Services", our company spares no efforts to achieve the target of "Being the best one, not better one". We concentrate on our products, and hope to provide our customers with best quality products at best price. We know we are young, and we are able to make great progress in future. We have great confidence in our products.
Now we are not only exporting our own products, we are also exporting some other refrigerator parts, freezer parts, water cooler parts, air conditioner parts, auto air conditioner parts from China to all over the world. Our customers are all over 60 countries and areas, including China, Pakistan, Italy, Korea, Spain, India, Serbia, USA, Russia., Canada, Syria, Lebanon, Sri Lanka, Panama, and Brazil.
We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual benefit.
Now i send the detail information about Roll Bond Evaporator as follows:

Raw material Al-plate: finished products thickness: 1.1 2.0mm raw material Al plate thickness: 1.7 2.15mm Structure Double side rollbond evaporator, single side rollbond evaporator, part single side rollbond evaporator Key process Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing Technical Standards 1) Size: width 1150 (max), length 2300 or more (max) 2) Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator. Performance 1) Surface treated with powder painting to prevent the corrosion 2) Inner cleanness can meet the requirement of R134a & CFC cooling system. 3) Can satisfy the cooling capability requirements. Performance 3.5 million sets per year (10000 sets per day)

R134a Cooling System Tube Inside standards

Residual moisture ≤5 /100cm3 Residual impurity ≤1 /100cm3 Residual mineral oil ≤100 /100cm3 Residual chlorine ≤5vloppm Residual paraffin ≤3 / Biggest single impurity ≤0.5mm

Specification of coating

Coating thickness thickness of coating40 90 μ m Hardness of coating ≥2H Impact of coating 50cm?kg/cm impact, no crack Adhesion of coating ≥two grade Flexibility of coating Around R=3D bend 180?, no crack or no fall off Color tolerance of powder painting E≤1.5
