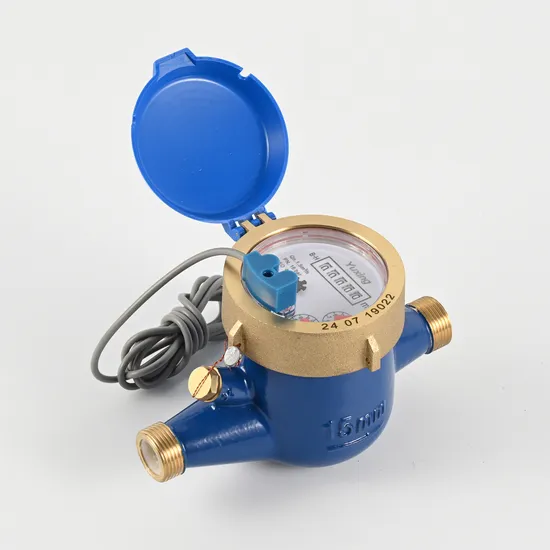

Hot 2024 DN15 Multi-Jet Dry Dial Class B/C R160 Cold Water Meter Brass Body

Product Description

Product Description
Application:--Measuring the total volume of cold potable water passing through the pipeline.

Feature:--Dry type, magnetic drive, easy and long term clear reading, frost resistance, long working life ect; -- Technical data conform to international standard ISO4064 Class B Class C R80,R100,R125,R160. --Data Output Options: 10 L/Pulse, 100 L/Pulse, or 1000 L/Pulse

Working condition:Water temperature: 0.1°C~50°C for cold water meter . Water pressure : ≤1.0Mpa Compliance with standard: ISO4064(GB/T778.1-1996) ISO4064(GB/T778.1-2007)Maximum permissible error:(1) in the lower zone from Qmin(Q1) inclusive up to but excluding Qt(Q2) is ±5%. (2) in the upper zone from Qt(Q2) inclusive up to and including Qs(Q4) is ±2%;(Hot water meter ±3%)

AIN TECHNICAL SPECIFICATIONS According ISO4064(GB/T778.1-1996) standard

Type	Size (mm)	Class	Qs Overload Flow	Qp Permanent Flow	Qt Transitional Flow	Qmin Minimum Flow	Minimum Reading	Maximum Reading
			m3/h		L/h		m3
LXSG-15E	15	B	3	1.5	120	30	0.0001	99,999
		C			22.5	15
LXSG-20E	20	B	5	2.5	200	50	0.0001	99,999
		C			37.5	25
LXSG-25E	25	B	7	3.5	280	70	0.0001	99,999
LXSG-32E	32	B	12	6.0	480	120	0.0001	99,999
LXSG-40E	40	B	20	10	800	200	0.001	99,999
LXSG-50E	50	B	30	15	3000	450	0.001	99,999

According ISO4064(GB/T778.1-2007) standard
Dimensions and Weight

Type	Meter Size	Length	Width	Height	Connecting		Weight
					Thread
	mm	mm			D	d	kg
LXSG-15E	15	165	99	108	G3/4B	R1/2	1.4
LXSG-20E	20	195	99	108	G1B	R3/4	1.7
LXSG-25E	25	225	104	114	G11/4B	R1	2.4
LXSG-32E	32	230	104	120	G11/2B		2.7
LXSG-40E	40	245	128	158	G2B	R 11/2	4.5
					Flange connecting conform
LXSG-50E	50	280	128	183	D1=160 D2=125 4-M16		12

Flow Error Curve:
Pressure Loss Curve:
