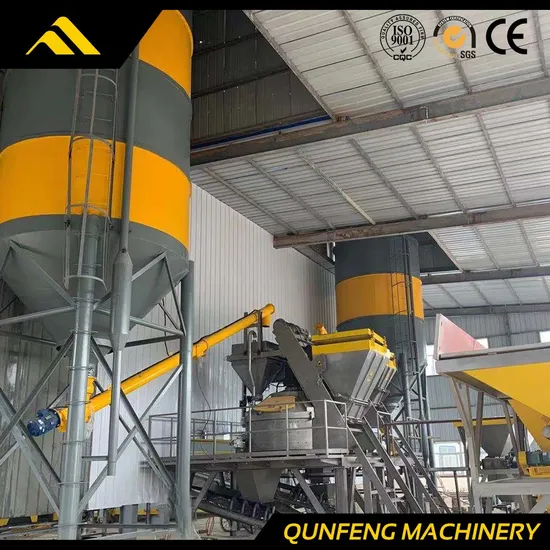

Stand Seaworthy Packing Mixing Concrete Batching Plant with Long Life

Product Description

Product Description
Features
QMP Series Planetary Concrete Mixer is suitable for all high quality concrete with high speed (hard, semi-hard and plastic concrete). It's can be used not only for concrete mixing, and also mix glass, ceramic, refractory materials and other products.
1) The specially designed mixing device makes the mixing speed faster and the more evenly; the mixing blade is more wear resistant;
2) Flexible couplings and fluid coupler (optional) can protect the drive system from overload shocks;
3) We developed special gearbox, making the power distributed to the mixing device effectively and ensure the mixer working efficient with low noise even under harsh production conditions;
4) Large-size access door is easy for maintenances and cleaning;
5) There are high pressure cleaning device and water content tester for choice;
6) From most suitable selection to customized for special applications, as well as maintenance and service, we are able to provide a full range of technical support and assurance.

Items	QMP250	QMP330	QMP500	QMP750	1000	1500	2000	2500	3000
Filling Volume (L)	375	500	750	1125	1500	2250	3000	3750	4500
Feeding Capacity (Kg)	600	790	1200	1800	2400	3600	4800	6000	7200
Compacted Concrete (L)	250	330	500	750	1000	1500	2000	2500	3000
Mixing Power (kW)	11	15	18.5	30	37	55	75	90	110
Mixing Star/Mixing Blade (Qty)	1×2	1×2	1×2	1×3	2×2	2×2	3×2	3×3	3×3
Side Scraper/Discharge Scraper (Qty)	1/1	1/1	1/1	1/1	1/1	1/1	1/2	1/2	1/2
Discharging Power (kW)	Pneumatic Discharging	2.2	2.2	2.2	3	3	4	4	4
Weight (Kg)	1500	2000	2500	3500	5500	6500	8500	10500	11000
