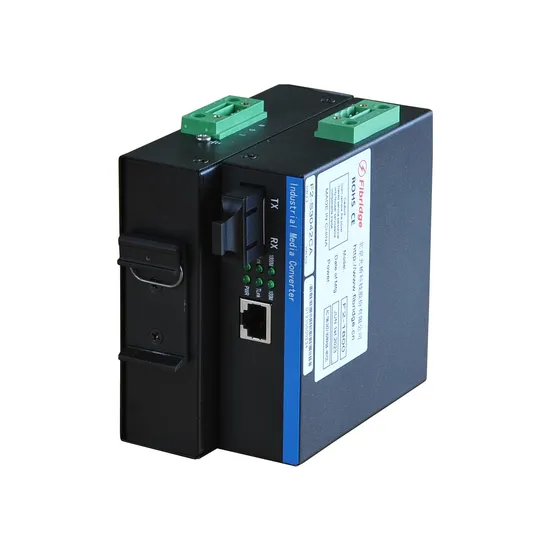

DIN-Rail Unmanaged 1-Port 1000m Fx + 1-Port 1000m Tx Industrial Switch

Product Description

Product Description Fibridge F6-1GT1GX series network industrial switch is a high-performance ethernet access equipment developed by Beijing Fibridge. It has a 10/100/1000 mbps Ethernet interface and a 1000 mbps optical port.The device is built-in power module, you can choose 220V AC input or 12V DC input products.The device operates at a temperature of -40ºC~+80ºC Range and a humidity of %10~%90(No condensation).The F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet.
Product Features
Support IEEE802.3/802.3u/802.3x/802.3az forward mode;
Meet the requirements of reliable work in harsh electrical environment;
Support Ethernet Port auto-negotiation;
Support flow control;
Industrial &Modular design make the equipment reliable and flexible;
Support overload protection;
Reverse-link protection is supported;
Support optical hot plug;
Level of protection:IP40;
ISO9000 qualified;
Product Passes testing of the Ministry of Public Security;
Product obtains network qualification certificate.
Detailed Photos
Product Parameters

Network Characteristics
Ethernet Protocol	IEEE802.3/802.3u/802.3x store and forward
Flow Control	IEEE802.3x flow control, back pressure flow control
Network Interface	OPT: 1000MBase-FX Single/multimode SC/FC/SFP/1*9
	ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLAN	No
MAC Addresses	1K
Jumbo Frame	No
Cache	NO
Exchange capacity	4Gbps
Packet Forwarding Rate	2.976Mpps
Management	No
Optical Characteristics
Optical Interface	SC/FC/SFP/1*9(Optional)
Fiber Core Count	Single / Dual core transmission
Wavelength	1310nm/1550nm(850nm)
Fiber Mode	Single Mode / Multimode
Environmental Characteristics
Temperature & Humidity	Working temperature: -40ºC~80ºC
	Storage temperature:-40ºC~85ºC
	Working humidity:10%~90% RH No condensation
	Storage humidity:5%~90% RH No condensation
Power	AC 100-240V/50-60Hz Built-in switching power supply,
	DC12V 1A External power supply
MTBF	≥100000 hours
Mechanical Characteristics
Structural Dimension	125× 108× 32mm
Product Weight	0.5kg

Ordering Information

Model	Ports	Management
F6-1GT1GX	1 1000Base-Fx Optical port SFP/SC 1 1000Base-Tx Ethernet port	N/A

Business Terms Price is FOB Beijing.
3 years warranty.
Price doesn't include SFP module.
