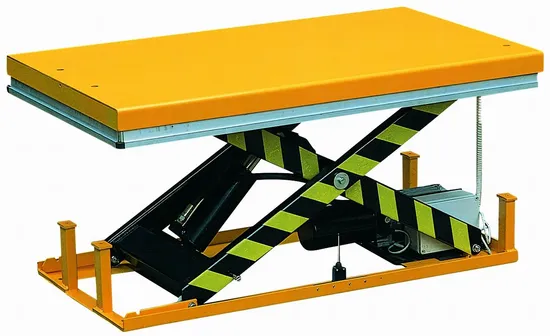

1Ton 2Ton 4Ton EU standard Heavy Duty Stationary Electric Hydraulic Scissor Lift Table with CE certificate

Product Description

•Heavy duty design.
•Capacity:1~4Ton ,with single scissor.
•With safety guard.
•With anti-explosion valve.
•Customs' special requirements are acceptable.
•HW series lift tables meet EN norm and ANSI/ASME safety standards.
•These models can be used in above-floor or in-floor pit applications.
•Standard Safety Features:
Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
Low-tention (24V) control box with up-down buttons.
Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
Safety clearance between scissors to prevent trapping during operation.
•Other Standard Features:
Self lubricating bushings on pivot points.
Removable lifting eye to facilitable handling and lift table installation.
Optional protection curtain available.
Other optional accessories as below
Other optional accessories as below,

Model	Capacity	Lowered Height	Raised Height	Platform Size	Base Frame Size	Lift Time	Power pack	Net Weight
	kg	(mm)	(mm)	(mm)	(mm)	(second)		(kg)
HW1001	1000	205	1000	820×1300	640×1240	20-25	380v/50HZ,AC1.1kw	160
HW1002		205	1000	1000×1600	640×1240	20-25		186
HW1003		240	1300	850×1700	640×1580	30-35		200
HW1004		240	1300	1000×1700	640×1580	30-35		210
HW1005		240	1300	850×2000	640×1580	30-35		212
HW1006		240	1300	1000×2000	640×1580	30-35		223
HW2001	2000	230	1050	850×1300	785×1220	20-25	380v/50HZ,AC1.5kw	235
HW2002		230	1050	1000×1600	785×1220	20-25		268
HW2003		250	1300	850×1700	785×1600	25-35		289
HW2004		250	1300	1000×1700	785×1600	25-35		300
HW2005		250	1300	850×2000	785×1600	25-35		300
HW2006		250	1300	1000×2000	785×1600	25-35		315
HW4001	4000	240	1100	1200×1700	900×1600	30-40	380v/50HZ,AC2.2kw	375
HW4002		240	1100	1200×2000	900×1600	30-40		405
HW4003		300	1400	1000×2000	900×2000	45-50		470
HW4004		300	1400	1200×2000	900×2000	45-50		490
HW4005		300	1400	1000×2200	900×2000	45-50		480
HW4006		300	1400	1200×2200	900×2000	45-50		505
HW4007		300	1400	1500×1700	1200×1600	45-50		420
HW4008		300	1400	1800×2200	1500×2000	45-50		540

Nu-Lift Group has five factories producing more than 350 products, each factory specializes in different products, factories include:
1. Pallet Trucks factory: producing manal pallet truck, semi electric pallet truck, and full electric pallet trucks.
2. Stackers factory:producing manual stackers, semi electric stacker, and full electric stacker .
3. Lift Table factory: producing manual mobile lift table, electric static lift tables etc.
4. Drum Handling Eqipments factory:producing many kinds of drum handling equipments.
5. Roller Skates and Hydraulic Jack factory: producing many kinds of roller skates and low profile hydraulic jacks .
