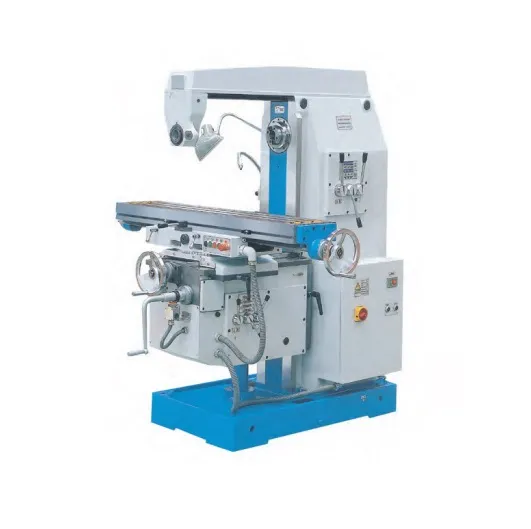

45 Degree Rotary Table Horizontal Milling Machine (HUM32A)
| US$8,500.00-8,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HUM32A
Structure
Knee-Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Max.Rotary Angle of Table
45 Degree
Transport Package
Wooden Case
Specification
Horizontal Milling Machine
Trademark
SMAC
Origin
China
Product Description
Features:Rectangular table guideways with high stability,
hardened and ground table surface,
automatic feeds on X ,Y axis,motorized lifting and falling of table on Z axis.
Specifications
| unit | HUM32A | |
| TABLE : | ||
| Table size | mm | 1320X320 |
| T slot | no | 3 |
| Size ( Width ) | mm | 18 |
| Centre distance | mm | 70 |
| Max. load of Table | kg | 500 |
| Max.swivel of table | degree | ±45º |
| machining range : | ||
| table Longitudinal travel(manual/auto) | mm | 700/680 |
| table Cross travel (manual/auto) | mm | 255/240 |
| table Vertical travel(manual/auto) | mm | 320/300 |
| MAIN SPINDLE :- | ||
| Spindle taper | iso50 7:24 | |
| quill travel | mm | No |
| spindle speed /step | rpm | 30-1500/18 |
| vertical spindle axis to column surface | mm | No |
| vertical spindle nose to table surface | mm | No |
| horizontal spindle axis to table surface | mm | 30-350 |
| horizontal spindle axis to arm bottom | mm | 155 |
| arm travel | mm | 500 |
| FEEDS :- | ||
| Longitudinal/cross feed | mm / min | 15-750/18 |
| Vertical/step | mm/min | 5.7-280/18 |
| Longitudinal/cross rapid speed | mm / min | 2300 |
| Rapid Traverse vertical | mm/min | 770 |
| POWER : | ||
| main motor | kw | 7.5 |
| (X/Y/Z) feed motor | kw | 1.5 |
| coolant motor | kw | 0.125 |
| others | ||
| package dimension | cm | 216x178x199 |
| overall dimension | cm | 229.4x177x166.5 |
| N/W,G/W | kg | 2650 |
Packing list
| N0. | Name | Model | Qty |
| 1 | Machine | HUM32A | 1 |
| 2 | Mill chuck(7:24) | ISO50(4,5,6,8,10,12,14,16) | 1sets |
| 4 | wrench | S17-19,S21-24,S27-24,S32-36 | each 1 |
| 5 | Single head wrench | 14 | 1 |
| 6 | Inner-haxagonal spanner | 5,8,10 | each1 |
| 7 | Shell end milling abor | ISO50-ф40 | 1 |
| 8 | Reduction sleeve | ISO50/MT4 | 1 |
| 9 | Oil gun | 1 | |
| 10 | Horizontal draw bar | M24-M16 | 1 |
| 11 | Horizontal milling bar | Φ22,ф27,ф32 | Each 1sets |
| 12 | Foundation bolt | M20X500 | 4sets |
| 13 | Operation manual | 1 | |
| 14 | Quality certificate | 1 | |
| 15 | Packing list | 1 |
