Stainless Steel Bottles Recycling Line

Product Description

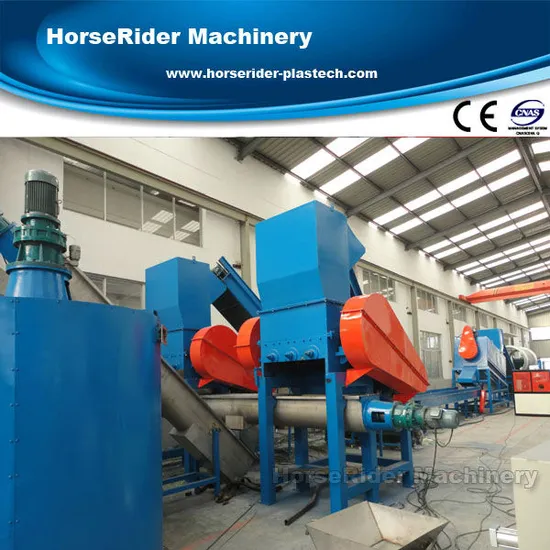

Stainless Steel Bottles Recycling Line
1.It is mainly for PET bottle crushing,washing and drying. PP PE and some other rigid plastics are also can be washed by this line.

2.The whole line is fully automatic and it has characteristics of high efficiency, low noise and easy operation. It adopts hot water washing to get good quality.

3.Various output capacities can be chosen: 200KG/H, 300kg/h, 500kg/h, 1000kg/h...

4.The recycling line can easily crush, wash and pelletize wasted plastic products

5.From beginning to finished products. Waste and dirty agricultural films and
Waste packing material or rigid plastics can be treated step by step by this machine

The whole equipment includes parts as follows:

NO	ITEM	DESCRIPTION	SELECTIVITY
1	Prewasher	Remove the solid impurity which are water insoluble, such as hand stone, sand, etc. It can also wash bottles' surface.	Optional
2	Bale Breaker	It is used in large capacity recycling line, and bottles are compressed in bale.	Optional
3	Belt Conveyer	Including the metal detector.	Necessary
4	Label Remover	Label removing efficiency, more than 98%	Optional
5	Manual Select Platform	Made according to workers' height, supply a suitable plate for selecting the left labels or some other impurity.	Optional
6	Belt Conveyer	Conveying the bottles into crusher.	Necessary
7	Crusher	With water, the materials of the blade adopt SKD-II or 9CrSi. It has a function of prewashing too.	Necessary
8	Screw Feeder	Conveying the flakes into friction washer.	Optional
9	Friction Washer	Scrubbing material in high-speed with water.	Optional
10	SCrew Floating Washer	Remove few remand paper, sand, label from material based on different density.	Optional
11	Screw Feeder	Conveying the flakes into hot washer.	Necessary
12	Hot Washer	High temperature stirring washing with caustic soda. Water can be heated by steam or electric.	Necessary
13	Screw Feeder	Same as Item 8.	Necessary
14	Friction Washer	Same as Item 9.	Necessary
15	Screw Floating Washer	Same as Item 10.	Necessary
16	Dewatering Machine	High speed centrifuge drying.	Necessary
17	Drying System	Electric heating wind drying.	Necessary
18	Label Wind Separator	The last left impurity will be separated from flakes by the blower fan.	Optional
19	Silo	Store the final material.	Necessary
20	Electrical Control Panel	Adopts Siemens and DELIXI as main component.	Necessary
