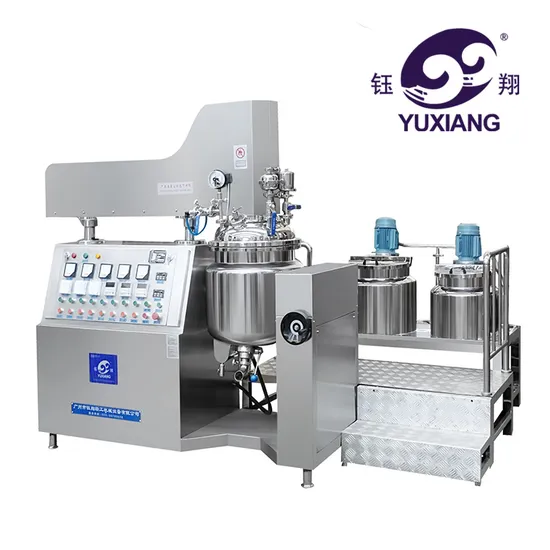

Yx-100L Hydraulic Lifting Vacuum Homogenizer

Product Description

Product Description General Introduction
Pizza SauceMaking Machine Pissa Sauce Vacuum Emulsifying Mixer
This machine is vacuum emulsifying mixer.It is a processing equipment with mixing, homogenizing, emulsifying,heating fuction, etc.The machine is widely used to produce cosmetic cream,lotion,as well as food cream,paste ,etc.It is the first choice of cosmetic factory which manufacture high quality products. The machine adopts the component of international famous brands, which ensure durable quality and operational stability of the machine. According to the feedback from our customers, this design style provides great satisfaction performance to them.This device is mainly composed of Water phase pot, Oil phase pot, Emulsifying pot, Vacuum system, Lifting system(optional), Electric control system, Operation platform etc.


Vacuum Emulsifying Mixer Features
SIEMENS frequency converter for speed adjustment, which can meet production of different technology requirement. The vacuum defoaming can make the materials meet the requirement of being aseptic.The vacuum material sucking adopted can avoid dust,especially for the powder products. Germany famous brand mechanical sealing, good sealing effect and long working life. The tank body and the pipes adopt mirror polishing, which fully conforms to GMP standards. Material contact parts all use SUS316L stainless steel. The heating method mainly include electric or steam heating for customer's choice. Advanced PLC touch screen control is optional. The emulsifying pot lid can adopt hydraulic lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.

Advantage
It's used for produce the cream, lotion, paste, ointment, paste, conditioner, etc. Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few production, it can exert homogenizing effect fully;
Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
Customer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r/min. Product Description:

Model	Effective Capcity	Emulsifying Motor		Agitator		Vacuum pump		Heating power
		KW	R/MIN	KW	R/MIN	KW	Limit Vacuum	Electric heating	Steam heating
RHJ-10	10	0.55	0-3600	0.37	0-85	0.37	-0.09	6	2
RHJ-20	20	0.75	0-3600	0.37	0-85	0.37	-0.09	9	3
RHJ-50	50	2.2	0-3600	0.75	0-80	0.75	-0.09	12	4
RHJ-100	100	4	0-3500	1.5	0-75	1.5	-0.09	24	9
RHJ-150	150	4	0-3500	1.5	0-75	1.5	-0.09	24	9
RHJ-200	200	5.5	0-3300	1.5	0-65	2.2	-0.09	28	10
RHJ-300	300	5.5	0-3300	2.2	0-65	2.2	-0.085	32	12
RHJ-500	500	7.5	0-3300	4	0-60	4	-0.085	50	16
RHJ-800	800	11	0-3300	5.5	0-60	4	-0.08	65	25
The parameters are for reference only, the products and capacity can be customized.

Our product catagories mainly include: Vacuum emulsifying mixer, Liquid washing mixer, Water treatment equipment, Perfume machine, Filling machine, Packing machine, Labeling machine etc. We are able to supply a wide range of high quality products for your One-stop sourcing in our exhibition center.
We attend exhibitions all around the word every year.You are welcomed to see our product and new designed item there .We hope a face to face communicate and service could helpful to our cooperation.
When we make delivery ,the products will be packed in wooden case to avoid of destroy.
