Asphalt Cold Milling Machine Sm200m Road Machinery Width 2m
| US$32,000.00-51,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SM200M
Type
Tool Milling Machine
Object
Tool
Structure
Bed type
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Overall Length
14940 mm
Overall Width
2515 mm
Rated Power
447kw/2100rpm
Cooling Mode
Turbocharged and Inter-Cooled
Transport Package
Container Bulk Nude Frame
Specification
32000kg
Trademark
china top
Origin
China
HS Code
8479109000
Production Capacity
100pieces/Month
Product Description
Asphalt Cold Milling Machine Sm200m-3 Road Machinery Width 2mProducts Description

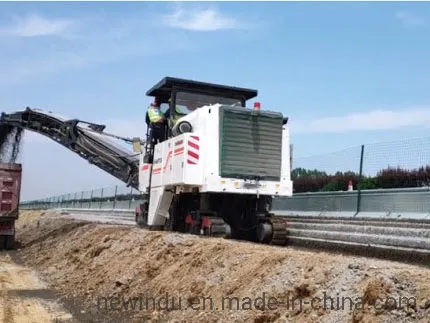

SM200M-3 road milling machine is one large-sized crawler road milling machine that integrates the mechanical, electric, and hydraulic technologies to well meet all kinds of needs in road maintenance and cater to the development trend of modern road milling machine towards large-scale in terms of specification and automation and intelligence in terms of control.
This product is applicable for the large-area removal and stripping operations of pavement diseases, including expressways, asphalt roads of various grades, airport runways, and harbors and ports, as well as the texturing of cement roads and is one indispensable large-size road maintenance machine in modern mature road maintenance processes.
Product Paramenters
| Item | Unit | Parameter | |
| Milling parameters | Milling width | mm | 2000 |
| Milling depth | mm | 0~320 | |
| Milling drum | Number of milling cutters | Piece | 162 |
| Engine | Manufacturer | Cumns | |
| Model | QSX15-C600 | ||
| Cooling mode | Turbocharged and inter-cooled | ||
| Number of cylinders | Inline 6-cylinder | ||
| Rated power | kW/HP | 447/600 | |
| Rated speed | rpm | 2100 | |
| Displacement | L | 15 | |
| Fuel consumption | g/kW.h | 192 | |
| Engine oil consumption | L/h | 0.24 | |
| Working performance | Traveling speed | km/h | 0-5 |
| Weight | Machine weight | kg | 29700 |
| Operating weight | kg | 32000 | |
| Electric system | Voltage | V | 24 |
| Conveyance system | Width of stage-I belt | mm | 800 |
| Width of stage-II belt | mm | 800 | |
| Theoretic conveyance capacity | m3/h | 470 | |
| Swing angle of two-stage conveyer | ° | ±45 | |
| Transport sizes | Length * Width * Height | mm | 14940*2515*4090 |
