Hot Sale Fish Bone Crusher to Crush Animal Bones

Hot Sale Fish Bone Crusher to Crush Animal Bones

US$22,000.00-25,000.00 1 Piece (MOQ)

Basic Info.

Processing Technics
Crushing-before-Mixing
Screen Mesh
Without Screen Mesh
Grinding Equipment Type
Roll Crusher
Pellet Mill Type
Screw Granulator
Capacity(T/H)
Max.5t/H(Max.8t/H, Max.10t/H, Max.12t/H, Max.15t/H
Construction Material
Carbon Steel, Stainless Steel
Voltage
220V/380V/440V
Box Dimension
300*600 mm(400*800 mm, 500*1000 mm, 600*1200 mm, 8
Diameter of Blade
180mm (220mm, 280mm,350mm,400mm, 550mm)
Screw Speed
10-40 Rpm
Motor Power
11kw (22kw, 37kw, 45kw, 75kw, 90kw)
Core Components
Engine, Motor, Gearbox
Spindle
Single Spindle, Twin-Spindle, Four-Spindle
Blades Materials
9crsi, 6crw2si etc.
Transport Package
New Design Bone Crusher Machine: Good Packed by Pl
Trademark
stordworks
Origin
Jiangsu. China
Production Capacity
20sets/Mounth

Product Description

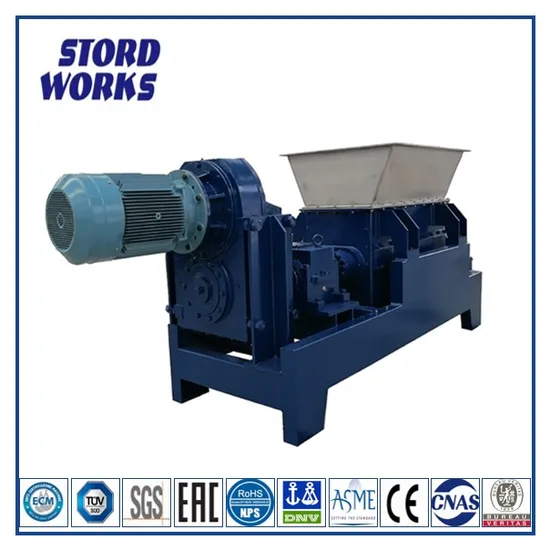

Crusher is used for crushing the whole animal carcasses, and various internal organs and bones from slaughterhouses.
Generally use crusher to reduce the size of the material and then delivery by screw conveyor or vane pump before cooking. The motor model and the speed of the crushing shaft can be adjusted according to the production demand, the operation cost is low.The design of quick repair and replacement parts makes the crusher more efficient.
1) low speed axis can handle metals in raw materials.2) equipped with electronic speed monitoring, the motor can be stopped immediately when large matter enter the crusher.3) the spindle is equipped with heavy roller bearings, which can resist large radial and axial impact.4) standard parts are used for driving from motor to shaft.5) localized structures can replace parts in a short time.6)the material inlet and outlet are equipped with standard removable butt flanges.
1) Carefully check the quantity and quality of equipment before packing.2) Good packed by plastic wrap.3) Fittings and spare parts are packed in wooden pallet .4) Iron Frame, Suitable for land transport and sea freight.5) Add labels and shipping mark.

JIANGSU STORD WORKS LTD. Located in Fangqiao National Machinery Industrial Park, at the Taihu Lake, Yixing City, Jiangsu, China,It is home to more than 200 employees , covers an area of 25000 M2 and has more than 70 various manufacturing and testing devices,with the maximum lifting capacity of 100T and the maximum plate rolling capacity of 120mm.StordWorks has the specialized drying machine production workshop and advanced machining centers. We also have various international pressure vessels certification and abundant experiences in equipment manufacturing, such as National standard pressure vessel certification, American ASME certification, Norske Veritas DNV certification and EU PED certification.Jiangsu StordWorks adheres to the business philosophy of "Focusing on Professionalism & Quality First", and the service concept of "Customer-orientation and Exceeding Customer Satisfaction". By means of our excellent quality and perfect service, Jiagnsu Stord Works Ltd. sincerely looks forward to cooperating with you!
