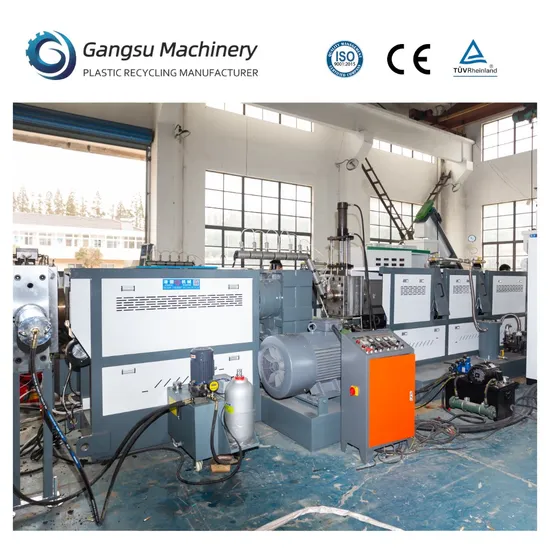

Gangsu Energy Saving Plastic PP/PE Regrinds Pelletizer for Film Flakes plastic Recycle Machine

Product Description

PE/PP/ABS/PS hard material Reliable Factory Plastic Granule Machine with Automatic Pelletizing System
Product Description
You can choose double stage or single stage extruder according to the cleanness of your raw material.This PP/PE hdpe rigid flakes plastic pelletizing machine can be displayed "L" or "U" shape according to clients' workshop area.We can also customize the granulator according to client's material and product requirement.
Output from 200kg/hr up to 1000kg/hr.Suitable for specialized plastic recycling plants and pelletizing plants, the equipment has many advantages such as low energy consumption, stable output, easy maintenance, long service life and cost-effectiveness.
1.Applicable plastic materials: HDPE PP ABS PS PP Hard Plastic, etc. 2.Material shapes: Rigid flakes. 3.Material types: Small flakes. 4.Material comes from offcut, industry defective materials, washed materials and printed materials.
The final product will be in pellet form and can be placed directly into the production line for blowing film, tube extrusion and injection molding.
Single Stage Pelletizing Line Process flow: Screw loader→ Dosing feeder →Single screw extruder →Hydraulic filer changer→ Die head →Water ring cutting →Dewatering machine→Vibrator→ Air dryer Blowing system→ Storage hopper→ Finished product packing.
Double Stage Pelletizing Line Process flow: Screw loader→ Dosing feeder →1# Single screw extruder →1# Hydraulic filer changer→2# Single screw extruder →2# Hydraulic filer changer→ Die head →Water ring cutting →Dewatering machine→Vibrator→ Air dryer Blowing system→ Storage hopper→ Finished product packing. Product Parameters

Model	Screw diameter(mm)	L/D ratio	Productivity(kg/h) for LDPE/LLDPE
ML85	85	28-33	180-260
ML100	100	28-33	260-350
ML130	130	28-33	450-550
ML150	150	28-33	650-750
ML160	160	28-33	800-1000
ML180	180	28-33	900-1200

Detailed Photos
1.Screw loader
Loading the plastic flakes
2.Dosing feeder
Feeding the quantitive flakes into the extruder
3.Extruder (1)A specialized single screw extruder applied to gently melt the pre-compacted material. (2)The plastic scraps will be well melted, plasticized in the extruder. (3)With double-zone vacuum degassing system, volatiles such as low molecular and moisture will be removed efficiency, especially suitable to heavy printed film and material with some water content.
4.Hydraulic screen changer & Extrusion mould(1)Structure: Plate and double stations (2)Temperature control zone:2zones (3)Pressure: 0-15MPa (4)Material of mould: 38CrMoAIA (5)Heating processing: Nitrogen treatment (6)Hardness HV850-950,depth: 0.4-0.7mm
5.Horizontal cutting machine Material of blade: K2

6.Dewatering Device (1)This drying system can get final pellet humudity less than 1%. (2)Horizontal design of dewaterer with small floor area.
7.Silo (1)The function of the blower is to transport particles to the silo through stainless steel pipes. (2)Pipes and silos are wrapped with black sound insulation cotton, which reduces the volume from 82dB to 68dB. (3)New design makes it easier to operate.
