Pharmaceutical Foodstuff Herb Universal Pulverizer Grinder
| US$2,000.00-8,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
B series
Spare Parts
Available
Advantage
Easy Operation Better Price
Type
Hammer Crusher
Drive
Electric
Crushing Degree
Intermediate Crusher
Crushing Style
Grinding and Impact
Cutter Material
High-Speed Steel
Tongs′ Features
Universal Tongs
After-sales Service
Site Service or Online Technical Support
Warranty
All Its Life
Object
Herbs
Transport Package
Export Plywood Case
Specification
550*600*1250mm
Origin
Jiangsu
Production Capacity
50set/Month
Packaging & Delivery
Package Size
110.00cm * 60.00cm * 165.00cm
Package Gross Weight
250.000kg
Product Description

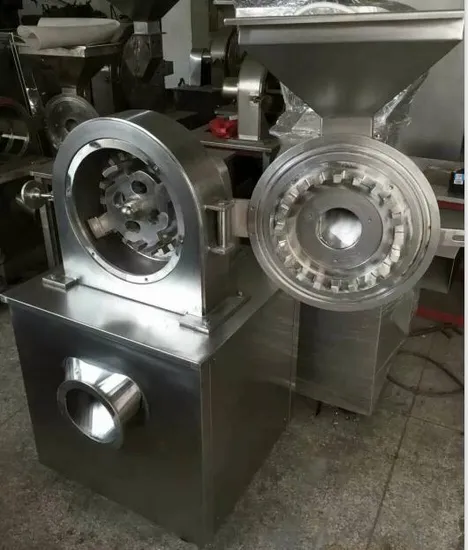

B Series Universal PulverizerMain application:
This machine is applied for material crushing in such trades as pharmaceutical, chemical and foodstuff etc.
Working principle:
By means of relative motion between movable and fixed fluted discs, material is crushed through impact and friction of the teeth and impact among the material. Designed according to GMP standard and wholly made of stainless steel, model 30B, model 40B and 60B crushing chamber is equipped with water cooling jacket, with simple structure, high output and easy cleaning, this machine is the mot ideal crushing equipment at present
Technical Data
| Spec | unit | 20B/20B Set | 30B/30B Set | 40B/40B Set | 60B/60B Set |
| productive capacity | kg/h | 60-150 | 100-300 | 160-800 | 500-1500 |
| speed of main shaft | r/min | 4500 | 3800 | 3400 | 2800 |
| feeding granule size | mm | 6 | 10 | 12 | 15 |
| finess of pulverization | mesh | 60-150 | 60-120 | 60-120 | 60-120 |
| grinding motor power | kw | 4 | 5.5 | 11 | 15 |
| fan power | kw | 1.5 | 1.5 | 1.5 | 2.2 |
| weight | kg | 250 | 320 | 550 | 680 |
| overall dimension(L×W×H) | mm | 550×600×1250 | 600×700×1450 | 800×900×1550 | 1000×900×1680 |
| overall dimension(set)(L×W×H) | mm | 1100×600×1650 | 1200×650×1650 | 1350×700×1700 | 1550×1000×1750 |
