Modular Changeover Switch 2p 63A Sf263 Sf463
| US$0.40-0.90 | 1,000 Pieces (MOQ) |
Basic Info.
Model NO.
BSF263
Installation
Indoor Low Voltage
Operation
Manual
Grounding Mode
Not Grounding
Movement Mode
Vertical Rotary Type
Number of Poles
1p, 2p, 3p or 4p
Grounding
Un Grounded
Series
1p, 2p, 3p or 4p
Run
Swing
Switching Mode
Double-Throw Type
Structure of Operating
Manual
Certification
RoHS, CE
Brand
OEM
Uilization Category
AC-7b
Transport Package
Carton
Trademark
OEM
Origin
China
HS Code
8536500090
Production Capacity
50000PCS/Month
Product Description
Product DescriptionBSF Manual Changeover Switch
BSF series modular changeover switch is a new generation of power changeover switch independently developed by our company. It realizes dual power switching up to 63A with only the size of mini circuit breaker case, which has the advantages of small size, high cost efficiency, high reliability, long life and easy installation.
A changeover switch switches a house's electricity supply from the general grid power supply to a "generator system" in case of power outage. The changeover switch connects to the main power grid, generator or alternate source and the house wiring. When you switch or "Change over" all the power on that circuit changes from either Grid or Generator.
Features
| Modular strcture design |
| Standard DIN rail mounting |
| Maximum current upto 63A |
| With transparent label window |
| Mechanical lifespan>100000times |
| Eletrical lifespan>5000times |
| Electrical Characteristics | |||||
| Modular size | 1 Module | 2 Module | 4 Module | ||
| Model | BSF125 | BSF225 | BSF240 | BSF463 | |
| Thermal current Ith(40ºC) | 25A | 25A | 40A | 63A | |
| Operation frequency | 50/60Hz | ||||
| Rated voltage(AC) | 230V | ||||
| Rated insulation voltage(Ui) | 440V | 500V | |||
| Impulse withstand voltage(Uimp) | 4kV | 6kV | 4kV | ||
| Operation temperature | -20 - 50ºC | ||||
| Operation Currents(Ie) | |||||
| Rated voltage(AC) | Load duty category | ||||
| 400V | AC 22A | 25A | 25A | 40A | 63A |
| 400V | AC 22B | 25A | 25A | 40A | 63A |
| Short circuit characteristic | |||||
| Withstand current(Icw) | IEC 60947-3 | 375A/1S | 600A/1S | 945/1S | |
| Short circuit current(Ics) | EN 60669 | 3kA | 6kA | N/A | N/A |
| Mechanical characteristic | |||||
| Rigid cable section | 35mm2 | 25mm2 | |||
| Flexible cable section | 10mm2 | 16mm2 | |||
| Tightening torque | 1.8Nm | ||||
| Protection degree | IP20 | ||||
| Mechanical lifespan | 100000times | ||||
| Electrical lifespan | 5000times | ||||

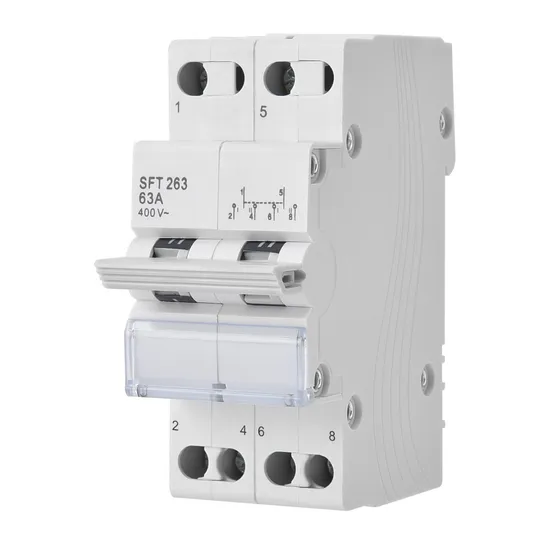

BSF263
BSF463
