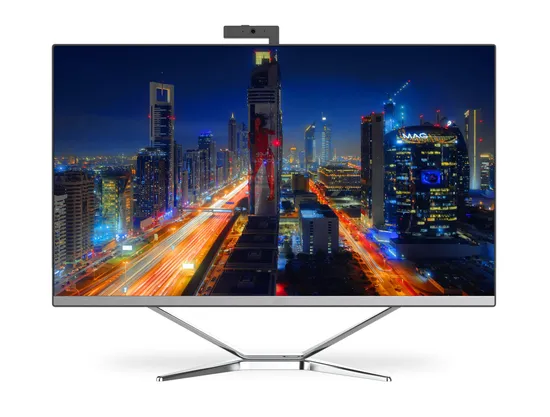

21.5 Inch All in One PC, Support 1st-9th Gen CPU and AMD CPU, Welcome OEM ODM Order
| US$120.00-250.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
2155682GDE
Memory Capacity
4GB/8GB
CPU Type
Intel I3 3210
Internet Connection
WI-FI
Trademark
ITZR/OEM
Origin
China
Production Capacity
20000PCS/Month
Product Description
| Model Name | OEM ODM MODEL | |||||
| System Physical Standard Configuration: | ||||||
| Type | Details | Descriptions | ||||
| Product Form | Form Factor | Thin mini ITX | ||||
| Dimensions | 542mm (L)*331mm (H)*50mm (D) For PS24 515mm (L)*310mm (H)*50mm (D) For PS22 | |||||
| LCD | Screen Size | 21.5 ,23.6 | ||||
| Specification | LED Backlight 1920x1080 Full HD View angle H=178DEG,V=178DEG(CR>=10) 250nits typical brightness 14ms response time 1000:1 contrast ratio | |||||
| Frameless | YES | |||||
| TP | Touch Module | / | ||||
| Battery | Type | N/A | ||||
| Capacity | N/A | |||||
| Working Time | N/A | |||||
| Base | Material & function | Metal | ||||
| System Hardware Configuration: | ||||||
| Type | Details | Descriptions | ||||
| Motherboard | Platform | Intel Intel B360/H310/H110/H81/H61/HM55/HM65Thin Mini ITX AMD A320 Thin Mini ITX | ||||
| CPU | Type | Support Intel® for 8th/7th/6th/5th/4th/3th/2th Generation Core™ i7/Core™ i5/Core™i3, Pentium®/Celeron® Up to 65W Desktop Processors Support AMD Ryzen & 7-Gen A-Series / Athlon™ Processor | ||||
| Speed | / | |||||
| GPU | HD Grasphics | Intel® HD Graphics | ||||
| Discrete Graphics Card | N/A | |||||
| Memory | Capacity | 2x DDR4 SO-DIMM 2400GHz Support Maxmium 32G Memery | ||||
| OPTANE | Intel OPTANE | Support 1x Intel OPTANE Slot (B360 Optional) | ||||
| SSD | Emmc | N/A | ||||
| M.2 Slot | 1x M.2 2280/2260/2242 Slot | |||||
| mSATA Slot | N/A | |||||
| HDD | SATA Slot | Support 1x SATA 2.5 Inch HDD | ||||
| ODD | SATA Slot | N/A | ||||
| Camera | Front | N/A | ||||
| Rear | N/A | |||||
| Speaker | Built-in | Built-in 2x 3W stereo speakers | ||||
| Network Connections: | ||||||
| Type | Details | Descriptions | ||||
| WIFI | WIFI Module | Intel AC3165 b/g/n/ac M.2 WIFI Module | ||||
| 4G/LTE | Built-in | N/A | ||||
| Bluetooth | BT Module | Bluetooth4.0 | ||||
| Ethernet Network | External Dongle | 10/100/1000M LAN | ||||
| Extension Interface | ||||||
| Type | Details | Descriptions | ||||
| Rear Port (Motherboard) | DC Jack | x1 (19V/6.32A) | ||||
| HDMI Port | x1 | |||||
| VGA Port | x1 | |||||
| DVI Port | N/A | |||||
| Display Port | N/A | |||||
| x1 | ||||||
| COM Port | x1 (Optional) | |||||
| PS/2 | N/A | |||||
| USB Port | 2x USB3.0 + 4x USB2.0 | |||||
| Type-C Port | N/A | |||||
| Micphone Jack | x1 | |||||
| Headphone Jack | x1 | |||||
| Side Port | USB Port | 2x USB3.0 + 4x USB2.0 | ||||
| Type-C Port | x1 | |||||
| Micphone Jack | x1 | |||||
| Headphone Jack | x1 | |||||
| Card Reader | 4-in-1 Card reader | |||||
| Main Accessories: | ||||||
| Type | Details | Descriptions | ||||
| Power | Standard Configuration | 1x 90W Power adaptor outside or1x 120W Power adaptor outside or 1x 150W Power supply inside | ||||
| Software Configuration: | ||||||
| Type | Details | Descriptions | ||||
| Operating System | Android Version | N/A | ||||
| Linux | N/A | |||||
| Windows | windows 10 | |||||
