3 axles powder transport particle granule grain Bulk cement tank trailer

Product Description

2/ 3 axles powder transport trailer used for hauling PE ABS PP particle granule grain Bulk cement tank trailer
Bulk cement tank trailer expert 2 axles 3 axles cement tanker trailer
Company Profile
We're specialist manufacturer for bulk cement tank trailer. Our bulk cement tanker semi trailer account for 1/3 of the China market. We also supply plenty of these tank trailers for overseas market every year. Different capacity tank trailer for different customers' requirements. 40m3, 50m3, 60m3 even 80m3 tanker volume for different request. We accept small order and customized.
We only supply high quality products. We know repairing the trailer really is very pain of neck every week. If you don't want to get such troubles, pick the high quality products please. You'll get what you pay.
Detailed Photos

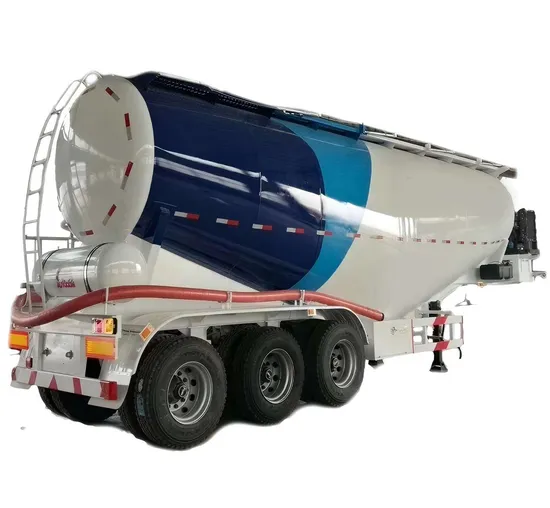

40/ 50 Cbm Bulk Cement Tank Trailer/ heavy truck trailer
Bulk Cement Tank Trailer, Bulk Cement Tank Semi Trailer, Cement Tank Trailer, Cement Tank Semi Trailer, Powder Tanker Trailer, Powder Tank Semi Trailer
Bulk cement tanker trailer, is specially designed for bulk powder cargo transportation, like cement, corn, wheet, and other grains. Round cylinder design is good for fast-speed discharging(3-4 discharging outlets) and container transportation ( tanker body and chassis can be seperately loaded into contaier and conncetec by bolts and nuts).
Capacity: 40/ 50CBM
Manhole Cover: Alluminum manhole cover
Air compressor: 10/ 12CBM air compressor
Engine: Disel engine or electrical motor-optional.
Chassis: Special designed chassis for heavy duty and extra durability
Axle: German style(BPW, L1, etc) or American type.
Suspension: Mechanical suspension or air suspension-upon requirement
Landing Gear: 28T, two speeds.
King Pin: 2"or 3.5" bolt-in King pin. Product Parameters

Cement tank Model	HTC9470GSN
Dimension: (mm)	11750mmx2500mmx3900mm
Tare weight	13700kg
Tank volume	40cbm
Wheelbase	6900+1305+1305
Tank thickness	tank body 6mm
Max Payload	50Tons
Overall weight	50T
Unloading rate(KGS/MIN)	above 1200KGS
frame and running constructon
Axle	FUWA /3 (13T type)
tyre	customized
rim	8.0-20/12
leaf-spring	80width*10pieces*13mm/6 sets
side beam	customized
Kingpin	JOST ,two speed
Electrical and braking system
Electrical system	24 volt electrical system.7 pin electrical connector. Parking .stop,reverse,number plate and indicator lights. rear light, rear front and side reflectors
Paint (shot blasting )	Chassis is comletely shor blasted to SA 2.5 grade,and painted with first layer of international Zinc Epoxy primer(30 Microns DEF),second layer international high built polyurethane under coat(40 microns dft),third and forth layers international alkyd finish top coat.total 100 microns. Seawater proofed,waxed,
power system(engine and air-compressor)
engine	Diesel engine,Weifang 4102 type
Air-compressor	10/2 doule cylinder
