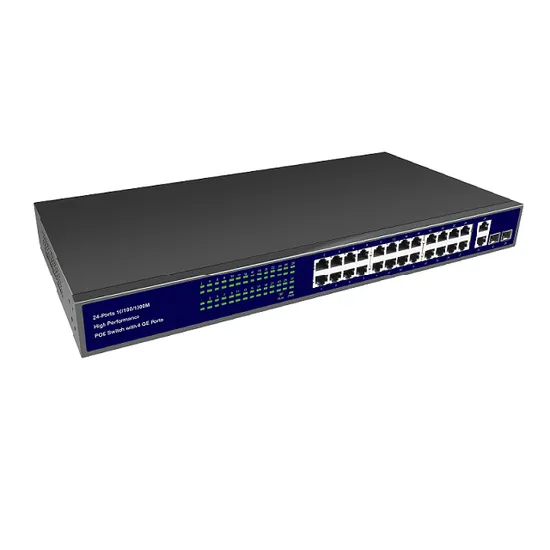

Poe Switch 24 Gigabit Poe +2 Gigabit Uplink+2 SFP Ports

Product Description

24 Ports Gigabit POE Switch, 24 10/100/1000Mbps PoE ports+2 10/100/1000Mbps uplink ports+2 SFP ports Product Description SP-2404GFB is 24 ports Gigabit PoE Switch comply with IEEE802.3af/at PoE standard, made up by 24*10/100/1000Mbps PoE ports, 2*Gigabit uplink ports, 2*SFP fiber injector. designed with desktop/rack-mount metal case, easy to provide power and Ethernet for wireless access point, IP camera...
For SP-2404GFB, all 26 RJ45 ports support auto-negotiation, auto MDI/MDIX, for high density PD equipment environment; To guarantee the important data transmission without any delay, it deal with flow classification based on different environment and application.
This PoE switch with max 250W/400W power supply, 30W for each PoE ports, fully work with IEEE 802.3af/at standard PoE PD equipment, simply plug and play, With the innovative energy-efficient technology, users can choose the PoE switch according power consumption, making it an eco-friendly solution for business networking. such as hotel, campus, industry zone, shopping mall...
Product Spec.:

Model	SP-2404GFB
CPU	RTL8382L+2*RTL8218B+RTL8214FC
Standard	1,IEEE802.3 10BASE-T Ethernet 2,IEEE802.3u 100BASE-TX Fast Ethernet 3,IEEE802.3ab 1000BASE-T Gigabit Ethernet 4,ANSI/IEEE 802.3 NWay Automatic negotiation 5,IEEE802.3af 6,IEEE802.3at
Ports	24* 10/100/1000M RJ45 PoE Ports 2 * 10/100/1000M RJ45 Up-Link Ports 2 * 1000Base-X SFP Fiber Ports
Property	1,Connector: RJ-45,SFP. 2,Support 10M/100M/1000 Mbit/s data rate 3,Support half duplex, full duplex, self negotiation mode 4,Support MDI/MDI-X adaptive 5,Support VLAN port isolation
LAN Cable	1,10/100/1000 BASE-TX: 2,3/4/5 twisted pair, max 100 meters transmit range
LINK LED	1,Per Port:1000LINK/Act;10/100M Link/Act 2,Per Device: POWER
Back bandwidth	56Gbps
Packet Forwarding Rate	10 Mpbs:14800pps 100 Mpbs:148000pps 1000 Mpbs:1480000pps
Switching Mode	Storage and forwarding
MAC Address	Support MAC address automatic learning, automatic aging MAC Address Table: 8K
PoE Starndard	IEEE802.3af,IEEE802.3at
Max Port PoE power	30W
ESD	±6KV
Max Power	250W / 400W
DC Input	100-240V~ 50/60Hz
Working Temperature	0ºC ~ 40ºC
Storage Temperature	-40ºC ~ 70ºC
Working Humidity	10% ~ 90% RH
Storage Humidity	5% ~ 90% RH
Heat dissipation	Fan
Size (L×W×H)	L440*W221.5*45H
Weight	4 kg
