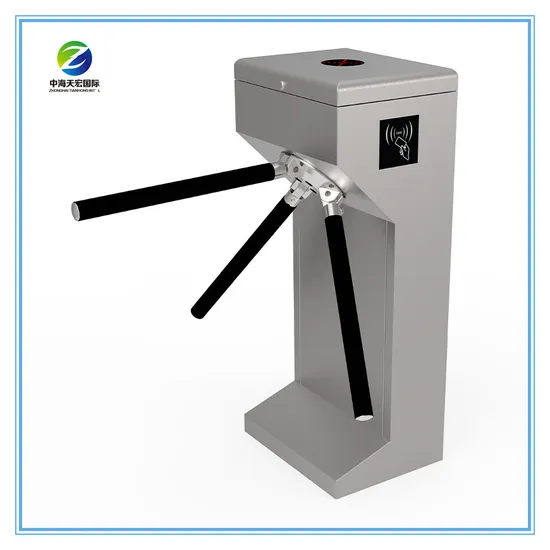

Full Automatic Stainless Steel Housing Tripod Turnstile

Product Description

Product Description
Parameters Tripod turnstile is the most basic type of pedestrian turnstile gate, which is composed of the chassis, mechanism, and three blocking rods that stop or release by rotating 120° each time. Its components include a chassis, mechanism, drive control board, motor, limit, direction indicator board, access control part, optional counter, etc. The metal rod (rod length standard 50cm) forms a spatial triangle as the blocking body (brake rod). It is made of 304 or 316 stainless steel, which is durable and not easy to deform. The blocking and releasing are achieved by rotation. MairsTurnstile is a professional tripod turnstile manufacturers.
Generally, the shape of the tripod turnstile is made of a 304 stainless steel plate, which is beautiful and generous, rustproof and durable, and can resist external force damage. Mairsturnstile as a professional tripod turnstile manufacturer offers the best quality tripod turnstile gate at an affordable price.
Tripod turnstile from tripod turnstile manufacturers Mairs is divided into mechanical type, semi-automatic type, and full-automatic type from the mechanism control mode. From the form, it is divided into a vertical tripod turnstile and a bridge tripod turnstile. The vertical tripod turnstile gate has a small volume and is relatively easy to install; The bridge tripod turnstile gate has a longer channel and higher security.
1. Protection: When the force exceeds the set value (such as 40 kg), arm will rotate in order to protect the mechanism from loss and then automatically reset.
2. Configuration: Mechanism, Housing, Control board and Power supply
3. Operation Direction: Single/bi-direction
4. Structure: Frame structure/stainless steel/cold sheet metal with paint
5. Drive Mode: DC electric motor
6. Anti-reverse: Have anti-reverse function in order to ensure one card for one person
7. Temperature:-10ºC~60ºC
8. Power:AC220V±10% 50Hz±4%
9. Humidity:5%~95%
10. Output:DC24V,DC12V,DC5V
11. Speed:≤25 people/minute
12. Power Consumption: Static state: single mechanism 20W; dynamic state: single mechanism 60W.
13. Noise:<50DB
14. Working Environment: Indoor, Outdoor (with rain frame)
15. Lane Width: 550~570mm
16. Interface Parameter: One Rs 232 interface, two card reader signals (Passive), one fire alarm interface.
17. Maintenance Port: 2
18. Service Life: Ten years (non-consumable)
19. IP Protection:IP42
20. Dimension: L*W*H: 500 x 300 x 1040(mm)
21. Net Weight: 45kg (Excluding the control part)
