Heavy-Duty Hydraulic Wing Disc Harrow Farm Machinery
| US$2,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
1BZDZ-4.4
Application Field
Agriculture, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Traction
Drive Type
Chain Drive
Arbor Configuration
Horizontal Axis
Color
Green
Warranty
One Year
Overall Dimension
532*288*134
Weight
3000 Kg
Working Width
2.5
Working Depth
20
No of Disc
24
Matched Power
55-73.5
Dia.of Disc
660
Transport Package
Iron Shellframe Box
Specification
SGS
Trademark
dadi
Origin
China Shandong
HS Code
8432290000
Production Capacity
5000sets/Year
Product Description

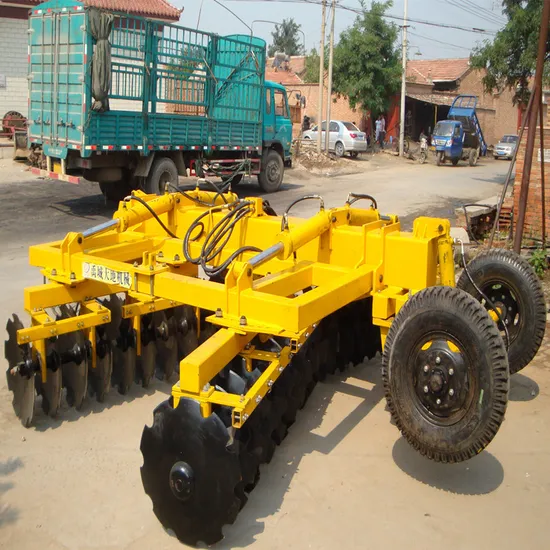

1BZDZ -6.2 Wing Folded Heavy-Duty Contraposition Hydraulic Wing Disc Harrow1BZDZ series wing-folded heavy-duty disc harrow are mainly used for cleaning away stubble of plants before tillage,or crushing clods after tillage on uncultivated land and in sticky heavy clay soil fields,they can also be used as a plough for primary tillage in dry cultivated fields. The series produced are all fitted with hydraulic rubber wheel for transportation.It is easy to be transported and change direction on the edge of fields.
1BZDZ -6.2 wing-folded heavy-duty contraposition hydraulic disc harrow are constructed around a central robust mono frame , can be installed by 32-66 discs, divided into front and rear two gangs notched disc. It's suitable for destroying, sticky heavy soils, low wetland, straw, corn crop land or land area of high crop plow before stubble plowing. The harrows have 230mm and 240mm,270mm three varieties disc space for choices. Different disc spacing has different effect:230mm and 240mm disc spacing is suitable for multi-purpose,270mm disc spacing is suitable for deep coarse plow stubble plowing, or without the plow surface farming.
| Model | Unit | 1BZDZ-4.4 | 1BZDZ-4.8 | 1BZDZ-5.3 | 1BZDZ-6.2 |
| Overall dimension | cm | 580x450x150 | 580x495x150 | 580x540x150 | 580*638*150 |
| Weight | kg | 3100-3150 | 3250-3300 | 3400-3450 | 4150-4200 |
| Working width | m | 4.4 | 4.8 | 5.3 | 6.2 |
| Working depth | cm | 20 | |||
| Blade spacing | mm | 230(or can choose 200,240,270) | |||
| No of disc | pc | 40 | 44 | 48 | 56 |
| Dia.of disc | mm | 660 | |||
| Transport clearance | mm | >200 | |||
| Productivity | ha/h | 2.7 | 3.2 | 3.8 | 4.65 |
| Matched power | kw | 135-180 | 150-200 | 165-220 | 220-260 |
| Linkage | Trailed | ||||
