Deep Hole Manual Automatic Mode Warranty 2 Years Tapping Machine

Product Description

Product Introduction

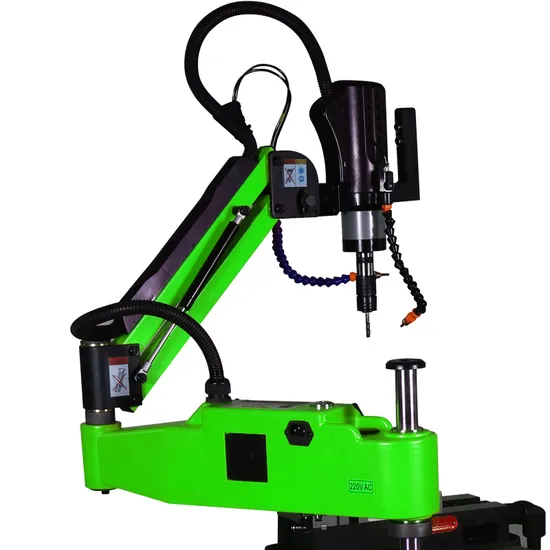

Electric Tapping Machine					Pneumatic Tapping Machine
Model	RS-M16	RS-M24	RS-M36	RS-M42	RS-M12
Voltage	220V-600W-50HZ	200V-1200W-50HZ	220V-1200W-50HZ	220V-1200W-50HZ	Gas pressure 8-10KG
Tapping capacity	M3-M16	M6-M24	M6-M36	M16-M24	M3-M12
Max radius	1000MM	1200MM	1200MM	1300MM	900MM
Highest speed	312r/min	200r/min	150r/min	250r/min	400r/min
Heavy volume	25KG	50KG	50KG	110KG	20KG
Way to work	Horizontal/Vertical	Horizontal/Vertical	Horizontal/Vertical	Horizontal/Vertical	Horizontal/Vertical
Tapping chuck	GT12,M3-M16 Standard,Optional	GT24,M6-M24 Standard,Optional	GT24,M6-M36 Standard,Optional	GT48,M16-M42 Standard,Optional	GT12,M3-M12 Standard,Optional
Lubrication time	0.1-25s	0.1-25s	0.1-25s	/	/
Lubrication blowing	Infinite	Infinite	Infinite	/	/
Workbench	980*680*700	980*680*700	980*680*700	/	900*600*700

Product Feature
. High tapping efficiency to spare manual work for adding oil and blowing scraps. Improvimg tapping working life,blowing scraps when pull back so as to keep the lubrication state of tapping, and the cooling function could help to keep screw taps in a low temperature. High precision,both adding oil and blowing scraps when tapping could help to keep the screw taps clean,which could highly increase the tapping accuracy. Tough and strong screw taps,which means adding oil and blowing scraps simultaneously to help tapping procedure more smoothly
. Reduce labor intensity, the operator is only responsible for swinging the nose,aiming at the hole position,pressing the switch to directly attack the teeth
FAQ
1.What is your advance? (1)We have ourselves factory. We accept the order if you want to customize products or design the product.
(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have 52 patents products.
(5)80% exporting products have been sold to Europe,America and Japan, high quality.
2. What's the minimum order quantity? One set is acceptable 3. How about the payment Term? We accept T/T,Western Union,LC 4. What's your port? Shanghai5. Can we use our own shipping agent?
Yes,you can.We had cooperated with many forwarders.If you ned,we can recommend some forwarders to you and you can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
d,we can recommen Yes,you can contact with the salesman.And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock,it is according to quantity.
