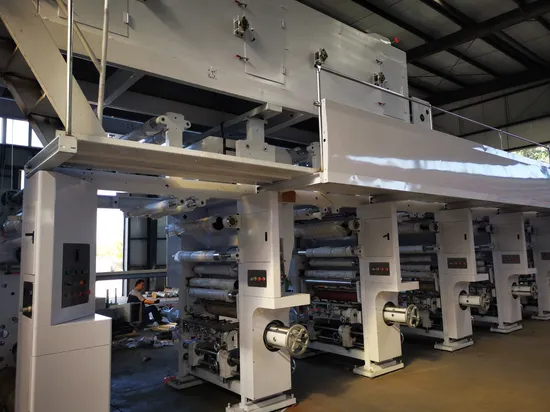

Rotary Screen Gravure Printing Wallpaper Wallcovering Machine Line
| US$1,000,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
Customization
Condition
NEW
System Supported
Windowsxp64
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Printing Interface
USB2.0
Applicable Material
Paper
Usage
Flexible Packaging Gravure Printing Machine
Feeding Mode
Web Gravure Printing Machine
Automatic Grade
Automatic
Color & Page
Multi-Colour Printing Press
Structure
Rotary Type Printing Machine
Capacity
1 Million Rolls Per Year
Working Time
24h Per Day, 330 Days Per Year
Electricity
380V, 50Hz, 160kw
Transport Package
Wooden Box
Specification
Customization
Trademark
CMT
Origin
China
Production Capacity
50 Sets/Year
Product Description
I. GeneralFinal product: PVC ( Vinyl ) wallpaper, non-woven wallpaper.
Wallpaper width: 1060mm, 530mm.
Mechanical speed: max. 120m/min, production speed: max. 80m/min, more than 1 million rolls per year.
Production process: 8 colors; embossing, rotary screen & gravure printing.
Cooling water: 50 tons/hour, recycling use.
Electricity: 380V, 50Hz.
Compressed air:0.6~0.8 Mpa.
Heating source: natural gas, around 2.5 million Kcal/hour.
Worker: around 3 persons/shift, 3 shifts/day.
II. Main Equipment
| No. | Name | Amount |
| 1 | Unwinding Unit | 1 |
| 2 | Servo feeding Unit | 1 |
3 | Double servo drive rotary screen printing unit | 1 |
| 4 | Saving ink type gravure printing unit | 5 |
| 5 | Chilling for embossing unit | 1 |
| 6 | Trimming Unit | 1 |
| 7 | Rewind big roll unit | 1 |
| 8 | Storage outfeed Unit | 1 |
| 9 | Rewinding storage Unit | 1 |
| 10 | Auto rewinding small roll Unit | 1 |
More details, please feel free to contact with me.
