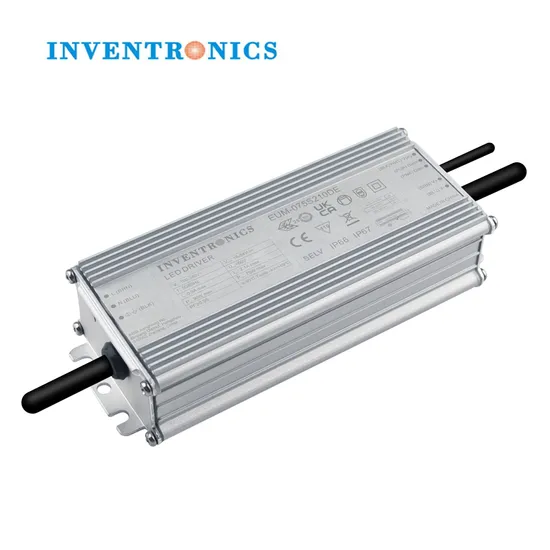

Inventronics Eum-075sxxxde 60W 70W 72W 75W Class I and II IP66 IP67 Outdoor LED Drivers
| US$17.00-21.70 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
EUM-075S105DE EUM-075S150DE EUM-075S210DE EUM-075S
Driving Method
LED Constant Current
Circuit Structure
Electronic Step-down Transformer
Certification
TUV, CE, RoHS, ISO9001, CCC, LVD, EMC, Bis, FCC, ENEC, CB, Ks, Kcc, Eac etc.
Power Supply Mode
Constant Current Source
Modulation System
Isolated 1-5V 1-10V 10V PWM/3-Timer-Modes Dimmable
In-Out
AC 90-305V Input, DC Output
Power Supply Voltage
AC85-265
Pack Sealing Size
SMD
Brand
Inventronics
Product Name
Inventronics 60W 75W Class II Class I LED Drivers
Adjustable Output Current
30-530mA 70-1050mA 700mA 105-1500mA 140-2100mA
Output Voltage Range
70~250VDC 36~107V 25~72V 18~54 VDC (24V 36V 48V)
Warranty
5 Years
Dimming Functions
Isolated 1-5V 1-10V 10V PWM 3-Timer-Modes Dimmable
IP Class
IP66 / IP67 and UL Dry / Damp / Wet Location
Input Surge Protection
Dm 6kv, Cm 10kv
Efficiency
Super High Efficieny, up to 92%
Power Factor
0.99 at 120VAC; 0.96 at 220VAC
Protections
All-Around Protection: Ovp, SCP, Otp
Features
Suitable for Luminaires of Protection Class I & II
Other Features
Selv Output, Output Lumen Compensation
Applications
LED Street Lighting, Tunnel Lights, Stadium Lights
Delivery Time
3 to 60 Working Days Due to Models and Quantity
Shipping Way
by Sea, by Train, by Air, by Express DHL FedEx etc
Transport Package
5PCS Per Inner Tray, 25PCS Per Brown Carton
Specification
4.41"x2.52"x1.44" inches (112x64x36.5mm), 490g
Trademark
Inventronics
Origin
Hangzhou, Zhejiang, China
HS Code
8504401400
Production Capacity
20000pieces/Month
Packaging & Delivery
Package Size
15.00cm * 7.00cm * 5.00cm
Package Gross Weight
0.800kg
Product Description
Product ParametersModels:
| Adjustable Output Current Range | Full-Power Current Range (1) | Default Output Current | Input Voltage Range(2) | Output Voltage Range | Max. Output Power | Typical Efficiency (3) | Power Factor | Model Number (6) | |
| 120Vac | 220Vac | ||||||||
| 30-530mA | 300-530mA | 530mA | 90~305 Vac/ 127~300 Vdc | 70~250 Vdc | 75W | 92.0% | 0.99 | 0.96 | EUM-075S053DE |
| 70-1050mA | 700-1050mA | 700 mA | 90~305 Vac/ 127~300 Vdc | 36~107 Vdc | 75W | 90.5% | 0.99 | 0.96 | EUM-075S105DE (4) |
| 105-1500mA | 1050-1500mA | 1050 mA | 90~305 Vac/ 127~300 Vdc | 25~72 Vdc | 75W | 90.5% | 0.99 | 0.96 | EUM-075S150DE (4) |
| 140-2100mA | 1400-2100mA | 2100mA | 90~305 Vac/ 127~300 Vdc | 18~54 Vdc | 75W | 89.5% | 0.99 | 0.96 | EUM-075S210DE (4) |
Fetaures: Full Power at Wide Output Current Range (Constant Power)
Adjustable Output Current (AOC) with Programmability
Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable
Output Lumen Compensation
Input Surge Protection: DM 6kV, CM 10kV
All-Around Protection: OVP, SCP, OTP
IP66 / IP67
SELV Output
Suitable for Luminaires with Protection Class I and II
5 Years Warranty
Descriptions: The EUM-075SxxxDE series is a 75W, constant-current, programmable and IP66/IP67 rated LED driver that operates from 90-305Vac input with excellent power factor. It is created for many lighting applications including low bay, tunnel and roadway etc. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature. Detailed Photos
