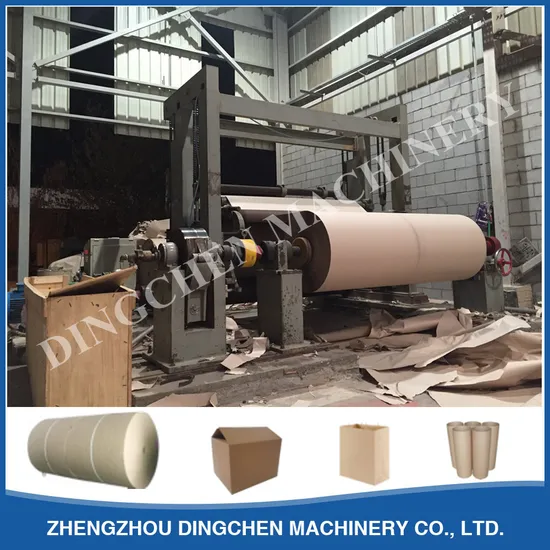

2200mm Corrugated Paper Making Line for Capacity 40 Tons/Day

Product Description

Technical parameter
Raw materials: waste paper Output paper: kraft paper ,corrugated paper
Output paperweight:80-1000gsm
Net paper width:2200mm
Cylinder width:2800mm
Capacity: 40TD
Working speed: 10-100mmin
Designing speed:120m/min
Rail gauge: 3400mm
Drive way: Alternating current frequency conversion adjustable speed , sectional drive.
The main structure and Equipments
Cylinder part: Ф1500mmx 2800mm×3400mm stainless-steel plate cylinder, 4pcs;Φ450mm×2800mm×3400mm couch roll,4 pcs,including one reverse roll; rubber hardness HS-38ºC±2,pneumatic loaded device,multitube for pulp,stainless Squeeze part: Φ400mm× 2800mm×3400mm squeeze roll,2 pcs, rubber hardness HS-90ºC±2, pneumatic loaded device
Press part :Φ1000mm× 2800mm×3400mm blind press roll 2set ,rubber hardness HS-97ºC±2, pneumatic press device
Dryer part: Φ1500mm×2800mm×3400mm alloy dryer can22 pcs, arrangement: 14+Sizing machine +8, including 2 pcs chrome plated cylinders, 22 sets of blades
Sizing part: Φ750mm×2800mm×3400mm sizing machine roll, 2 pcs, rubber coated hardness HS-98ºC±2, Dingqing glue
Reeling part: one set of 2200 horizontal pneumatic reeler, one set of winding sweat cylinder(Φ1100mm×2800mm×3400mm.)
Rewinding part: one set of 2200 frame-type rewinding machine
Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.
