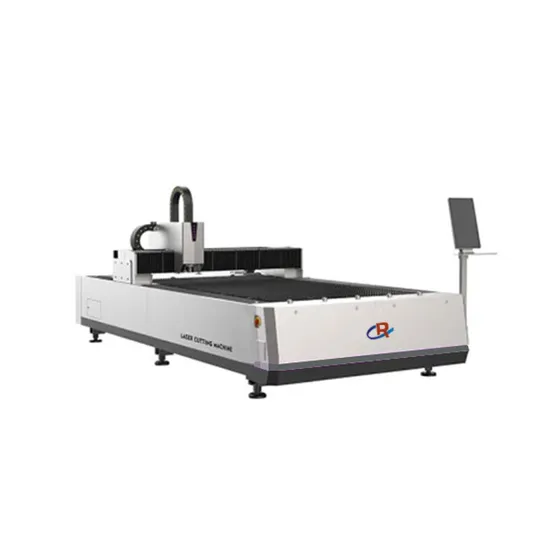

1000W 1500W 1530 Fiber Laser Cutting Machine for Metal Fiber Laser Cutting Raycus Max Laser

Product Description

Product Description
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet(tube), Mild Steel Plate(tube), Carbon Steel Sheet(tube), Alloy Steel Plate, Spring Steel Sheet(tube), Iron Plate(tube),, Galvanized Iron(tube),, Galvanized Sheet, Aluminum Plate(tube), Copper Sheet(tube),, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate,Tubes and Pipes, etc
Plate Welding Bed 1.It is welded by a piece of steel plate.
2.The first choice of most laser manufacturers. After the aging annealing process is achieved, it can be used for 20 years. The machine bed must be selected for high-power machines. The production cycle of the plate welding bed is relatively short, easy to organize production, high cutting efficiency, and long service life.
A.Brand: Raytools/WSX/Precitec/OSPRI or others brands customer's requirements;If it is mainly thin plates, below 3000w, recommend:WSX/Raytools
B. Automatic cutting head.It improves the processing efficiency of the fiber laser cutting machine - the thick plate piercing time is reduced; when processing workpieces of different materials and thicknesses, the machine can automatically and quickly adjust the focus to the most suitable position.
The automatic focus will reduce the phenomenon of overheating due to overheating of the plate.

Laser Power: 500W/1000W/1500W/2000W/3000W/4000W/6000W/8000W/10000W/12000W/15000W/20000W/30000W Brand: IPG/RAYCUS/MAX/or others brands customer's The higher the power, the thicker the cutting thickness.
Control system: CYPCUT
General functions include graphics processing, parameter settings, custom cutting process editing, nesting, path planning, simulation, and cutting process control.
Supports speed-dependent power adjustment and can set separate lead-in line speeds.
The material process library function allows all process parameters to be saved for reuse of the same material.


Servo and Motor Brand:Yaskawa, Panasonic, Mitsubishi,quality assurance

2.Rack:
Brand: YYC HIWIN Reduce frictional resistance and improve high-speed performance of linear guides.

What's the difference between fiber laser, YAG laser and CO2 laser working on metal material?

Laser source	Fiber laser	YAG laser	CO2 laser
Beam quality	Best	Good	Poor
Speed	Fast	Slow	Slow
Electrical efficiency	High	Common	Low
Reliability	Best	Good	Poor
Maintenance	Free	Complex	Difficult
Remote processing	Free	Complex	Difficult
Initial investment	High	Common	Low

Product Parameters

Model	RL3015	RL-4015	RL-4020	RL-6025	RL-8025
Working Area	3048*1524mm	4050*1524mm	4050*2030mm	6060*2530mm	8080*2560mm
Laser Output Power	20000w/15000w/12000w/10000w/8000w/6000w/4000w/3000W/2000W/1500W/1000W/500W
Positioning accuracy	±0.05mm
Repositioning accuracy	±0.03mm
Max. linkage speed	120m/min
Max. acceleration	1.5G

Detailed Photos

Quality Inspection:
Cutting Samples:
Application

Fiber Laser Cutting Machine is widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters,Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc
Exhibition&Certifications
Company Profile
Founded in 2011,Ranling Intelligent Equipment Technology Co., LTD is a manufacturer specialized in the research development and production of laser cutting machines, laser welding machines and CNC Aluminum profile cutting machines for windows and doors. On the basis of technology development, we have taken in a group of experienced personnel who are talented in senior management marketing and skills of producing. We are located in Jinan Shandong province, one of the best professional machine industries in China. All the products are certificated by CE and comply with international quality standards and are greatly appreciated in a variety of different markets at home and at abroad.
CNC Fiber Laser Cutting Welding Machine for Metal

After Sales Service
1. 1 year Guarantee for the whole machine. 2. 12 months Guarantee and free spare parts supply during this period. 3. 24 hours on line service 4. 3-7 days lead time 5. We will provide the Instruction Book, Operational manual and Training Video 6. Provide technical support for the whole lifetime on line 7. TT/Ali Trade Assurance payment
Packaging & Shipping
FAQ:
1.How to choose the right to for me? A : Tell us the following information
1) Metal material for welding: choose the most suitable model.
2) Laser welding metal material thickness: the power of the laser generator.
3) Line of business: We sell many products and advise on this line of business.
2.Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing
list/Commercial Invoice/ Sales contract for customs clearance.
3.If we want to learn how to operate the machine, Can you provide it?
A:Yes, we can. We can provide the on line training by video. We also provide free training course in our company.
4.How to install and use it?
A:We have the instruction Book, Operational manual and Training Video inside the machine. We also can provide the training on line by free
