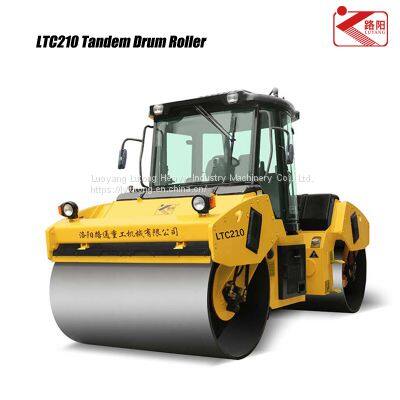

LTC210 10000kg Tandem Drum Roller
Product Details
Product Details
Product Description
Product DescriptionPRODUCT FEATURELTC210 Vibratory roller is a type of asphalt compaction machinery product which is independently researched and developed by Luoyang Lutong Heavy Industry Machinery Co., Ltd. based on decades of experience in compaction machinery research and development.
PARAMETERS
| Operating mass | kg | 10000 |
| Front axle load | kg | 5000 |
| Rear axle load | kg | 5000 |
| Static linear load | N/cm | 289 |
| Form of frame | Fork-type | |
| Water tank capacity | L | 2×450 |
| Fuel tank capacity | L | 134 |
| Hydraulic tank capacity | L | 75 |
| Vibration amplitude | mm | |
| High ampl. | 0.67 | |
| Low ampl. | 0.34 | |
| Vibration frequency | Hz | |
| High ampl. | 40 | |
| Low ampl. | 46 | |
| Centrifugal force | KN | |
| High ampl. | 160×2 | |
| Low ampl. | 90×2 | |
| Travel speed | km/h | 0-10 |
| Turning radius | mm | 6000 |
| Grade ability | % | 30 |
| Steering angle | ° | ±30 |
| Drum diameter | mm | 1150 |
| Drum width | mm | 1730 |
| Transverse swing angle of the vibrating wheel | ° | ±8 |
| Type of water spray | mm | Pressure |
| Wheelbase | mm | 3217 |
| Overall length | mm | 4558 |
| Overall width | mm | 1840 |
| Overall height | mm | 2674 |
| Ground clearance | mm | 258 |
| Diesel model | QSB3.9 | |
| Diesel power | kw | 74 |
| Diesel speed | r/min | 2400 |
This product is continuously improved with technological progress. The difference between the above listed parameters and structural characteristics and the actual product shall prevail in the actual product.
