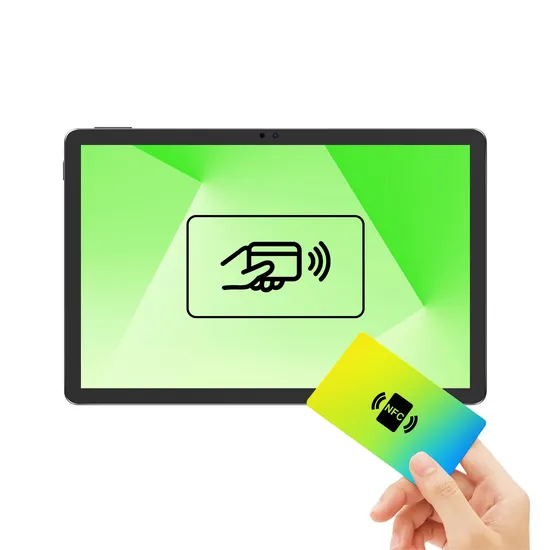

11 Inch Android NFC POS Terminal Touch Screen Tablet NFC Tap to Pay Tablet Android with Magnetic Charging Station

Product Description

Product Overview
11 inch Android NFC POS Terminal Touch Screen Tablet NFC Tap to Pay Tablet Android with Magnetic Charging Station
This is a customizable tablet with extensive customization options that include:
a) Custom logo branding and personalized startup screen b) Pre-installed applications c) Restrict to specific applications d) Direct boot to applicatione) MDM services for App deploy ..
Technical Equipment
-Size: 10.95 inch
-CPU: MT8781, Octa Core
-OS: Android 14 (GMS Passed)
-Screen: 1920*1200 IPS Incell
-Memory: 6+128GB
-Camera: 5+13 MP Speaker: 2x box speaker
-Wifi/BT: AC Wi-Fi & BT5.0
-4G LTE: Support
-Battery: 8000mah /3.8V -Front NFC: Yes -Charging Station: Yes Pretech's Tailored Solutions on NFC-enabled Tablet PC
Product Parameters

Type	Descriptions
Model	Pretech-L1108
Mechanical
Product Form	Tablet
Dimensions	256.8 x 168.3 x 7.5mm
Weight	500g (tablet only)
Case	Metal
Chipset & Platform
CPU	T606 2*A75 1.6GHz+6*A55 1.6GHz T616 2*A75 2.0GHz+6*A55 1.8GHz MT6769(G85) 2*A75 2.0GHz+6*A55 1.8GHz MT8786(G80) 2*A75 2.0GHz+6*A55 1.8GHz MT8781(G99) 2*A76 2.2GHz+6*A55 2.0GHz
GPU	Depends on CPU(SoC)
NPU	Depends on CPU(SoC)
RAM	3GB/4GB/6GB
ROM	32GB/64GB/128GB
OS	Android 14 (GMS)
Display
Screen	11(10.95) inch TFT LCD IPS INCELL
Resolution	1920 × 1200
Contrast Ratio	800:1
View Angle	85
Touch Panel	No separate touch panel, integrated in INCELL screen,10 point touch
Wireless
WiFi	IEEE 802.11ac/a/b/g/n 2.4GHz&5GHz
Bluetooth	Bluetooth 5.0
Cellular	YES,4G&3G&2G
Band	LTE-FDD:B1/B2/B3/ B4/ B5/B7/B8/B12/B17/B20/B25/B26/B28/B66 LTE-TDD:B38/B39/B40/B41 WCDMA:B1/B2/B5/B8 GSM:B2/B3/B5/B8
Positioning	YES.GPS /GLONASS/BDS
NFC	Yes
FM	YES
Camera & Speaker & Mic
Front	5MP FF
Rear	8MP/13MP AF
Flashlight	YES
Speaker	4 box speakers 8Ω/1.0W
Mic	Built-in*1
I/O ports
DC in	/
USB	Type-C*2,Type-A*2, support OTG
SD card	Nano sim *2 Or Nano sim+TF
SIM card	Nano sim *2 Or Nano sim+TF
Audio Jack	1*3.5mm
Docking	Optional(Sub2.0)
HDMI	/
Power supply
Battery	7000mah/3.8V 6hours video playing (support 8000mah)
DC in	/
AC Adaptor	Input:100-240V,50-60Hz.Output:5V/2A/5V3A/9V2A
Functions
Accelerometer(G-sensor)	YES
Gyroscope	Optional
Compass	Optional
Light sensor	Optional
Proximity sensor	Optional
Environment
Operationg temperature	0ºC to 45ºC
Storage temperature	-10ºC to 60ºC
Accessories
In the Box	AC/DC adaptor,USB cable,Manual,warranty card
Certifications
Optional	CE,FCC,RoHS,KC...

Packaging & Shipping
Company Profile
14+ Years Professional Experience on OEM & ODM Android/ Linux/ Windows Tablet PC Manufacturing Pretech International Co., Limited. was founded in 2010 and specializes in the research and development of consumer electronics. We pride ourselves in the quality of our products and excellent after-sales service. Our main products comprise Android based devices, including Tablet PC, Smartphone and Kiosk, Windows based terminals, including Tablet PC, Laptop & Notebook, and Computer Peripheral Accessories including Pencil for i-Pad, Active Stylus for Windows and Android based products. Pretech has rich and successful experience in handling large ODM and OEM custom projects. Recently, we have developed a touchable device which has a broad range of industrial applications, such us smart home control station, OBD diagnostic equipment for cars, health care devices for hospitals, display for AI products, as well as education tablet PCs for students, and other ODM projects to Screeno numerous to list. By combining our high-tech R&D facility and sophisticated imported production equipment with our strict QC system, our products are guaranteed to be of the high quality. At the same time, our direct component purchasing, skilled and efficient labor force and minimum profit policy integrate to form a competitive pricing structure. As our market share continues to grow, we continue to set new goals, striving for excellence through innovation. At the same time, we remain true to our core values of offering the best combination of quality and price and always putting our customers first. We are sure you will notice the difference and look forward to forming a successful long-term business partnership with you.
Our Services

Tooling ID Design MD Design

Hardware PCBA Schematic Design PCB Layout PCBA Debugging Proofing and Debugging of Peripheral components

Software Drivers Debugging Customization Debug Pre-installed applications

Accessories Smart Cover Docking Charging Station Charging Bracket/Dock Magnetic Back Clip Wall Mount Stylus Pen And more...

01 IOT Home • Wall-mounted Tablet with POE • Wall-mounted Panel Gateway • Smart Gateway Hub with Cellular Network • Tablet PC with Docking Station for Smart Air Conditioner • Smart Wall Panel Monitor • Door Control System Tablet • Meeting Conference Schedule Display	02 HMI • Tablet PC Open Frame for Smart Coffee Machine • Android Touch Panel for Smart Cooker Panel • Digital Signage for Vending Machine • 5 inch Android Tab for E-Bikes • Smart Android Touch Screen for Home Gym	03 Smart Healthcare • Smart Device for Skin Care • Blood Glucose Meter Dongle for Medical Use • Senior Care Tablet PC • Door Tablet for Clinics, Private and Public Hospitals • Therapeutic device for kids • Smart Display with AR for Kids
04 Car Infotainment • Professional OBD Tablet PC for Repair Shop • On-Board Diagnostics Tablet PC for Drivers • High Accuracy Pro Android Portable Navigation • Car Rear Seat Entertainment System	05 POS Solution • Smart Tablet Menu • Kitchen Display with NFC • Tablet PC for Feedback Management • Smart Device for Payment Terminal	06 Multi-media Device • Portable Translation Equipment • Smart Audio Guide • Portable Translation Equipment
07 Education • Tablet PC with stylus for Students Learning • Tablet PC for Students Learning with charging docking	08 NFC Solution • NFC Tablet PC	09 SBC & SOM • RK3588 • RK3576 • RK3568 • RK3566 • MT8788 • MT8781 • MT8768

After -sale Service -1year warranty for all products(Exclude accessories), any terminals with quality issue(Exclude human factors) can get repaired or replacement from us. -If clients handle the service locally, we will provide recommendations for clients to purchase some Spare parts(PCBA/LCD/Touch panel/Battery etc) -For the product assembling and repairing, we will provide video. If necessary, we will send technical staff to train -Technical assistance for whole life
Why Choose US Why PRETECH* Expertise: Extensive experience in hardware developing in IoT & HMI Solutions.* Integration: Seamless integration between your software and our hardware.Product Highlights * OS Compatibility: Supports Android, Linux, Windows. * Size Range: Available in 3 to 20 inches. * Processor Support: Compatible with Mediatek, Rockchip, Allwinner, Intel. * Connectivity: USB-C, DC, RJ45, POE, RS485, custom ports. * Optional Modules: LTE, 5G, NFC (TAP to pay), Fingerprint, TOF camera. * Device Management: OTA updates, MDM integration. * Sensors: Various options to enhance user interaction.Product Options * Off-the-Shelf Solution; * Half-Custom Solution: Modifications based on off-the-shelf products; * Fully-Custom Solution: ID design, MD design, tooling, electrical engineering, OS customization;
FAQ
Q1: Can you support to design the tablet pc/ smartphone /laptop outlook? A1:Yes, we can custom ID and MD design with your reference and using scenario description. Q2: Do you support the product software(SW) development? A2: Normally we do system and driver level development, Application-level development will be done by Client or 3rd party software(SW) developer assigned by clients. Q3: Which OS can you support development? A3:Yes, we can support tablet PC & smartphone custom OS based on Android OS ,Windows OS ,Linux OS, Ubuntu OS. Q4: Can you support to remove the battery from tablet PC? A4:Yes, sure, we can support tablet PC or smartphone removed battery, removed the camera, shipment without the device case, as well as we can support add the POE,USB Type C, DC IN, HDMI interface on the smart device. Q5: Can you support SDK service? A5: Yes, we can support SDK (software kit development) service for customers. Q6: Do you have any experience with educational projects? A6: Yes,we have rich experience with quite a lot educational cases. a. 7inch wifi version PND for European big map dealer. b. Windows 10.1inch OBD without battery/back cover for American 4s auto repair shop c. 8inch T618 4g octa core tablet with high temperature compatible battery for Australia map dealer. d. 10.1inch android headrest entertainment tablet pc with explosion-proof touch screen for uber. etc.countless cases Q7: Can you support customization of accessories for smart devices? A7:Yes, we can support custom smart cover, docking charging station, charging dock, magnetic back clip, wall mount, stylus pen for smart device. Q8: Can you provide prototype samples? A8: Yes, in principle we can provide prototype samples before bulk order. For this we will need detailed requirements and then be able to come back to you with the best proposed solution asap. Q9: What's the normal ODM product development time? A9: Normally, it takes 3-5 months, but it can vary depending on the complexity of the project. Please contact us and provide detailed requirements and we will propose the best solution to you asap. Q10: How is the ODM device development cost calculated? A10: Development charge is in 2 parts: a. Tooling design; b. PCBA development and hardware tuning. Cost also depends on the specific project. Please contact us and provide detailed requirements and we will propose the most cost effective solution to you asap. Q11: Can we sign NDA? A11: Yes, we can sign NDA. Q12 How to deal with the intellectual property? A12: It's joint development between clients and Pretech. The ownership of the intellectual property depends on the agreement between clients and Pretech. Q13: What's your after-sales service for ODM smart device ? Can you support two year's or more warranty? A13: Normally, we provide a 1-year warranty as standard. However, we can support a 2-year warranty or more, if the customer enquires. Please contact us and provide detailed requirements and we will propose the most suitable solution to you asap.
