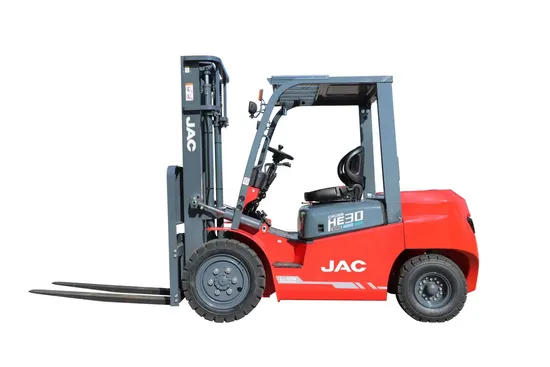

JAC Electric Forklift with Lithium Battery /Cpd30he 3 Series with 3500kg Capacity /New Energey/Oil to Electricity

Product Description

Model						CPD20H3		CPD25H3		CPD30H3		CPD30H3		CPD35H3		CPD20H3		CPD25H3		CPD30H3		CPD35H3		CPD30H3		CPD35H3
						Light condition-80V -80V						Medium working condition-80V				115V				115V				156V
1		Powe type
2		Rated load			kg	2000		2500		3000		3000		3500		2000		2500		3000		3500		3000		3500
3		Load center distance			mm	500										500								500
4		Lift height			mm	3000										3000								3000
5		Free lift height			mm	140				155						140				155				155
6		Fork size	××L×W×T		mm	1070×122×40				1070×125×45				1070×125×50		1070×122×40				1070×125×45		1070×125×50		1070×125×45		1070×125×50
7		Mast tilt angle	/ FR/RR		.	8/10										8/10								8/10
8		Minimum turning radius			mm	2500				2680						2500				2680				2680
9		Minimum right angle stacking aisle width			mm	3965				4150				4160		3965				4150		4160		4150		4160
10		Minimum right angle aisle width			mm	2700				2880						2700				2880				2880
11		Minimum ground clearance			mm	110				130						110				130				130
12		Height of overhead guard			mm	2060				2090						2060				2090				2090
13		Height form seat to overhead guard			mm	1010						1000				1010				1000				1000
14		Overhang (FR)			mm	465								480		465				465		480		465		480
15		Maximum travel speed	Full load		km/h	14		14		14		14		14		15				15				20		20
16			No load			15		15		15		15		15		15				15				20		20
17		Maximum lift speed	Full load		mm/s	300		300		280		300		280		310				280				470		420
18			No load			400		400		400		400		400		380				350				500		420
19		Maximum lowering speed	Full load		mm/s	440				460		460		330		450				460		360		460		360
20			No load			470				430		430		330		500				430		330		430		330
21		Overall length	Without forks		mm	2540				2709				2724		2540				2709		2724		2709		2724
22		Overall width	splash guard		mm	1160				1210						1160				1210				1210
23			frame			1145										1145								1145
24		() Mast height at maximum lift (with backrest)			mm	4030				4260						4030				4260				4260
25		Mast lowered height			mm	1995				2075						1995				2075				2075
26		Tires	Front wheel			7.00-12-12PR				28×9-15-14PR						7.00-12-12PR				28×9-15-14PR				28×9-15-14PR
27			Rear wheel			6.00-9-10PR				6.50-10-10PR						6.00-9-10PR				6.50-10-10PR				6.50-10-10PR
28		Wheelbase			mm	1665				1760						1665				1760				1760
29		Tread	/ Front wheel/rear wheel		mm	970/970				1005/984						970/970				1005/984				1005/984
30		Self weight	Without load		kg	3360		3730		4180		4360		4760		3340		3710		4120		4560		4100		4620
31		lithium battery	Voltage		V	80										115V								156V
32			capacity	15%maximum climbing capacity is 15%	Ah	150Ah				175Ah		220Ah				125Ah				173Ah				165Ah
34		Motor	Traveling		KW	11				11		16.6				15				15				20
35			Lifting		KW	12				15		13.5				15				15				20
36		Way of control				AC
37		Operating pressure			Mpa	18.5										18.5				18.5				18.5
38		Maximum drawbar pull			KN	18		19		18		18		19		18		19		18		19		20		21

Related Information HS Code: 8427209000 Brand: JAC Target Market: Global market Certificate: CE/SGS/ISO 9001/ISO 14001/SGS Production Capacity: 20,000 sets per year
Features
1.He appearance is upgraded, the shape is smart, and the color is clear, reflecting the dexterity and dynamic of the electric fork
2.Three colors for option: Rosy pink, Sky blue,Palace green;Low center of gravity balancing, stability reaching 1.53.
3.The body length reduced by 50-85mm, resulting in a smaller turning radius.
4.The ground clearance is increased to 170mm, resulting in better off-road capability.
5.The steering axle is cast as a whole with a combination of tapered roller bearings and large tires, designed to withstand high-strength conditions.
6.AC asynchronous aluminum -shell motor, the heat dissipation performance has been increased by 10%;
7.he large speed ratio gearbox increases the travel speed by 15% and improves the full load lifting speed by 6%,promotes the gradeability by 15%.
8.2-2.5 tons can be equipped with 150-350AH battery; 3-3.5 tons can be equipped with 175-460AH battery, which is longer in battery runtime;
