Product Description

ISO14409 Standard Barge and Boat Lifting Repair Inflatable Ship Rubber Launching Airbags

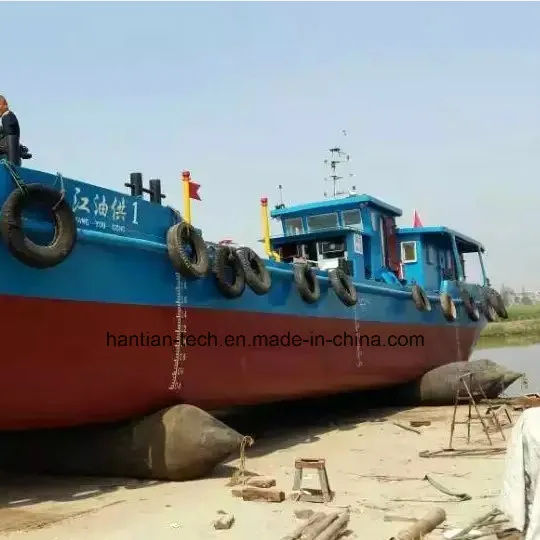

Marine Rubber Airbags is China independent intellectual property rights of innovative products, the products are mainly applied to ship launching and landing, weight lifting, handling, installation of underwater buoyancy aid etc. Nowadays, Marine rubber airbags are widely used in the world. The products are less limited by space, no large mechanical equipment, can shorten the working period and save the unnecessary cost. Through years of development practice, marine rubber airbag is become more safety, effective and green environmental protection.
Marine Rubber Airbags are designed using principle of rolling wood. "Hantian" marine rubber airbags choose the whole intertwine technology to make rubber airbags on the structure more reasonable, has higher safety coefficient and bearing capacity.

Material Choose the best quality of imported natural rubber, such as smoked sheet rubber and 3L natural rubber from Thailand and Malaysia, which has good elasticity, aging resistance, and will not take off layer. Meanwhile, During the process of produce rubber, we using efficient stabilizer to make rubber more environmentally friendly and no cracks. Our marine rubber airbags' material using three strands synthetic-tyre-cords whose tensile strength can be 31 KG, which make our airbags more higher bearing capacity and safety.
Manufacturing Technology:

Whole intertwine Technology

Airbags overall frame structure uses cross whole intertwine technology, the overall structure is more reasonable, texture clear, no juncture, high loads, more safety than lap technology(roller), more than 20% bearing capacity.

Framework:

"Hantian" Marine Rubber Airbags structure are consist of the outer rubber+synthetic cord reinforced rubber layers.

Its shape characteristics: central body cylindrical+tapered on both ends.
Cord layers: 4, 5, 6, 7, 8, 9, 10, 11, 12 layers
Quality Control and Management:

"Hantian" Marine Rubber Airbags has passed the ISO9001:2008 quality management system certification, Hantian guaranteed that all of our products are high standard performance, Hantian Marine Rubber Airbags fully comply with GB/T3795-1996 and ISO 14409

Specifications:

Diameter(m)		1.0	1.2	1.5	1.8	2.0
Medium Pressure(4-5)	Test Pressure	0.14-0.16	0.12-0.14	0.10-0.12	0.08-0.10	0.07-0.09
	Working Pressure	0.12-0.14	0.10-0.12	0.08-0.10	0.07-0.09	0.06-0.08
High Pressure(6-8)	Test Pressure	0.22-0.26	0.20-0.24	0.15-0.20	0.13-0.16	0.12-0.15
	Working Pressure	0.20-0.24	0.17-0.22	0.13-0.18	0.11-0.14	0.10-0.13

Accessories of Marine Rubber Airbags:
Each airbag is fitted with one set of toolbox.
Pressure gage, Inlet valve, Pipe fitting, Gasket seal, Seal end ring.
Welcome to your inquiry and order !
