Laboratory High Speed Disperser with Digital Display

Product Description

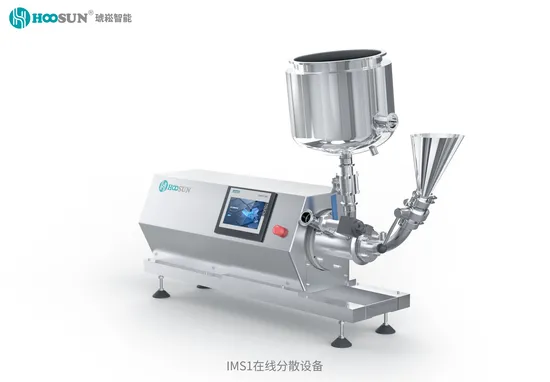

Product Description: Product Description: The IMS1 Continuous Dispersing and Mixing Equipment utilizes the Venturi effect for efficient and precise mixing and dispersion of liquids with suspended solids, powders, viscous fluids, and granules. Designed for laboratory applications, this high-speed inline mixer is ideal for chemical industries, coatings, dyes, pigments, and more.
Application Areas:
Micro and nano materials Ceramic materials Battery homogenization Conductive materials Digital inkjet Coatings and inks Key Features and Benefits:
High Efficiency: The IMS1 provides high-speed mixing and dispersion, achieving uniform particle size distribution and material homogeneity. Energy Efficiency: Advanced vacuum dispersion technology reduces energy consumption by more than 70%, leading to significant cost savings. Automation and Ease of Use: Easily integrates into automated systems, ensuring stable and reliable operation with minimal operator involvement. Durability and Reliability: Constructed with high-quality materials, ensuring long service life and stable operation. Versatile Applications: Suitable for a wide range of materials and processes, from chemical industries to digital printing. Technical Specifications:
Power (kW): 5.5 Maximum Rotation Speed (rpm): 8000 Processing Volume (L): 20-50 Powder Suction Speed (kg/min): 1-4 Maximum Viscosity (mPa.s): 60 Liquid Flow Rate (m³/h): 10-20 Suspension Flow Rate (m³/h): 2-4 Unique Technologies:
Special stator-rotor design ensures high-speed shear slurry and uniform particle distribution. Vacuum powder suction without loss and closed chamber to prevent leaks and contamination. Savings and Efficiency:
Energy-saving technologies reduce production and operational costs. High dispersion efficiency ensures superior product quality. After-Sales Service:
Professional installation and commissioning. Lifetime technical support and maintenance. Conclusion: The IMS1 is a reliable and highly efficient solution for mixing and dispersion in various laboratory applications. Its advanced technologies, energy efficiency, and ease of use make it an indispensable tool for your production needs. Contact us for more information and to place an order!
Technical Specifications Table for IMS Models:
Model Power (kW) Rotation Speed (rpm) Processing Volume (L) Powder Suction Speed (kg/min) Maximum Viscosity (mPa.s) Liquid Flow Rate (m³/h) Suspension Flow Rate (m³/h)

IMS1	3	8000	20-500	1-4	60	10-20	2-4
IMS2	3-7.5	6000	100-200	4-12	100	15-30	5-10
IMS3	11-18.5	4000	200-1500	6-20	200	20-30	10-20
IMS4	22-37	3000	1500-8000	3-10	100000	30-50	30-50
IMS5	45-90	3000	8000-15000	10-30	100000	>80	40-60
IMS-Plus	75-110	1950	8000-15000	>100	100000	>100	50-80
IMS6	110-160	3000	15000-25000	1-5	300000	50-80	60-100
IMS7	200-250	3000	25000-40000	5-30	300000	60-100	60-100
