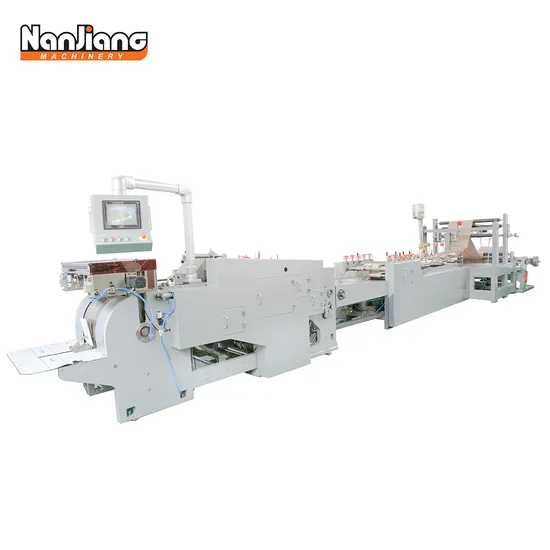

Roll Fed Square Bottom Paper Bag Making Machine (HD430-1)

Product Description

Having absorbed the new technology of domestic and abroad, we successfully developed the square bottom type of paper bag making machine with roll paper or printed roll paper. This machine features a continuous function of automatic paper suction, gluing, impressing, bottom sticking and bag formation at a stroke. All the operation procedures are controlled by PLC, saving labor force.
This is an ideal equipment for making paper bag for shopping, loading foods and so on.
Technical Parameter

Machine Model	HD430-1
Paper Roll Width	510-1230mm
Max.Roll Material Diameter	1200mm
Material Core DiaMeter	76mm
Paper Thickness	70-150g/m²
Paper Bag Width	160-430mm
Bag Bottom Width	80-170mm
Paper Tube Length	270-600mm
Speed	70-120Bags/min
Total Power	16KW
Machine Weight	10000KG
Machine Dimension(L*W*H)	12500*2300*2000mm

Packaging & Shipping
Moisture-proof and shock-proof packaging + Steel frame + Container
The machine is firmly fixed on the bottom of steel frame.Comparing with wooden case packing,this kind of packing way can greatly protect machine from deformation.
Our Services
1 After-sales Service Provided:
Engineers available to service machinery overseas

2 Warranty:
Guarantee for one years; Lifelong maintenance
Exhibition
Certificate
FAQ
Q: Are you manufacturer or trading company?
A: We are the manufacturer and have our own workers and factories.

Q: Where is your factory located? May I have a visit?
A: First of all,warmly welcome!
We have two factories.One is located in Wuxi city, Jiangsu province,another
is located in XuYi county,Huaian city.Our Wuxi factory is very close to
Shanghai city.

Q: Do you have machines in stock to sell?
A: No, we produce according to customers' requirements.

Q: How is the quality of your machine?
A: We are in this industry for about 20 years and regard quality as the life of
the enterprise.We choose the world famous manufacturers as our
suppliers.And besides,we have our own quality inspector.Machine parts are
checked one by one according to the drawings! Good quality and good after-
sales help us obtain good reputation in the international market! We have a
technical team of seven person and at the same time cooperate with other
Research Institutes.
We are committed to providing customers with the best packaging machine.

Q: What information should I let you know if I want to get a quotation?
A: First, Paper raw material: Reel paper or Sheet Paper.
Second, sizes of the paper bag, thickness of paper.
Send sample bag picture if available.
Then we will recommend the right machine to you!

Q: Do you have related machine working VIDEO?
A: Yes,contact me please!
