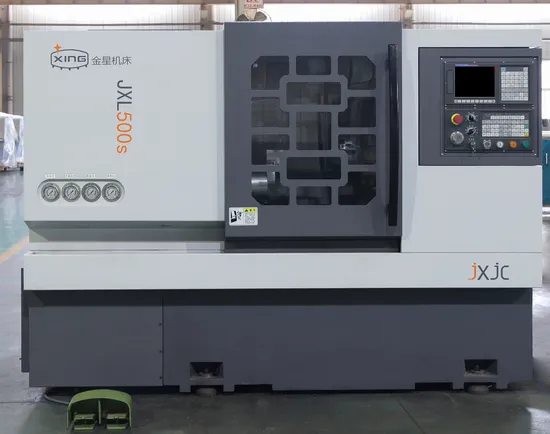

Slant Bed Lathe Machine Linear Guide Machine

Product Description

	item	specification
1	Max. swing dia. over bed	500mm
2	Max. turning dia. of workpiece	350mm
3	Distance between centers	500mm
4	Bed form	45°
5	Middle pallet	linear guide
6	Max.X stroke	230mm
7	Max.Z stroke	400-500mm
8	Rapid feed X/Z	18/24m/min
9	X/Z motor speed	3000RPM
10	Z axis linear guide width	30mm( roller style)
11	Ball screw X/Z	3210/3210
12	Spindle speed	100-4500RPM
13	Spindle nose	A2-6
14	Spindle bore	56mm
15	Power of main motor	7.5KW
16	Spindle clamp	8/10 inch hydraulic chuck
17	Chuck bore	56mm
18	Tool holder	Hydraulic Turret(taiwan)
19	Number of tool holders	12
20	Standard blade size	25×25mm
21	Maximum boring tool diameter	32mm
22	Tailstock stroke	340mm
23	Tailstock diameter	70mm
24	Tailstock Mandrel stroke	120mm
25	Tailstock taper	MT54
26	positioning accuracy X/Z	0.01/0.02mm
27	repositioning accuracy X/Z	0.005/0.005mm
28	Overall dimensions of machine	2500x1600x1850mm
29	Case dimensions of machine	2600x1700x2000mm
30	Net weight /gross weight of the machine	3500/3800kg

1. In the design stage, FEA technology is used to simulate and analyze changes under various working conditions, realistic complexity and high rigidity design;
2. The class type 45° inclined bed is used to increase the bottom area, maximize the rigidity of the machine tool, and improve the comprehensive cutting performance.
3. The X axis of the structure adopts traditional rectangular hard rail to improve vibration damping and dynamic rigidity;
4. Z-axis adopts high rigidity roller guide rails to improve machine stability and dynamic response;
