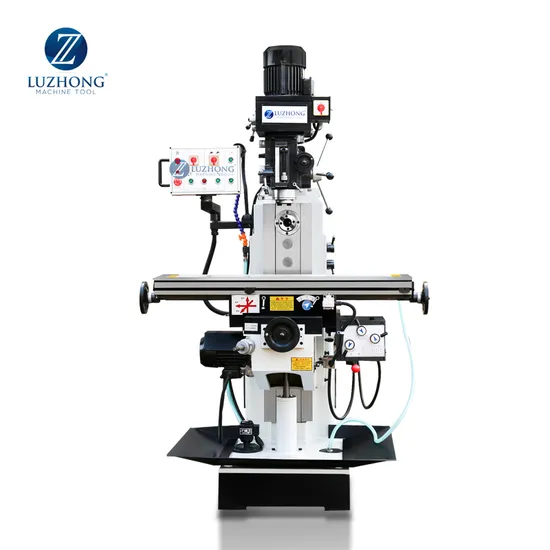

4in1 Universal Vertical ZX6350ZA Drilling And Milling Machine Vertical
Basic Info.
Model NO.
ZX6350ZA
Structure
Mill Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
50-100mm
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max. drilling dia.(mm)
50mm
Max. end milling width(mm)
100mm
Max. vertical milling dia.(mm)
25mm
Max.boring dia.
120mm
Max. tapping dia.
M16
Spindle taper
ISO40(V/H)
Spindle speed range
90-2000(v) 40-1300(H) rpm
Spindle travel
120mm
Table size
1200*280 opt.1500*280mm
Table travel
680*280 opt.1000*280mm
Table feed speed
X/Y:22-555 Z:300 electric
Main motor power
1.5/2.2(v) 3(H) kw
Transport Package
Plywood Case
Specification
1450x1400x2350mm
Trademark
LUZHONG MACHINE TOOL
Origin
China
HS Code
8459590000
Production Capacity
7000 Pieces/Year
Packaging & Delivery
Package Size
145.00cm * 140.00cm * 235.00cm
Package Gross Weight
1500.000kg
Product Description
Cheaper Universal ZX6350ZA Drilling and Milling MachineProduct Description
The main performance characteristics:
1. Vertical and horizontal milling head
2.X /Y/Z axis auto feed
3.vertical spindle manual feed and micro feed
4.Guide way with sparking quenching
Product Parameters
Product main technical specifications:
| Specifications(mm) | ZX6350ZA | |
| Max. drilling dia.(mm) | 50 | |
| Max. end milling width(mm) | 100 | |
| Max. vertical milling dia.(mm) | 25 | |
| Max.boring dia.(mm) | 120 | |
| Max. tapping dia.(mm) | M16 | |
| Distance from spindle nose to table surface(mm) | 80-460 | |
| Spindle taper | Spindle taper | |
| Horizontal Spindle taper | ISO40 | |
| Spindle speed range(r.p.m) | 90-2000(V) 40-1300(H) | |
| Spindle travel(mm) | 120 | |
| Table size(mm) | 1200×280 Optional: 1500x280 | |
| Table travel(mm) | 600×280 Optional: 1000x280 | |
| Table feed speed(mm/min) | X/Y:22-555 ,Z:300 | |
| Overall dimensions (mm) | 1500×1600×2200 | |
| Spindle motor power (kw) | 1.5/2.2(V) 3(H) | |
| Machine weight (kg) | 1400/1500 | |
Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
