H-X9010d PRO 3D Cbct Digital Panoramic Dental X-ray Machine

Product Description

Product Description

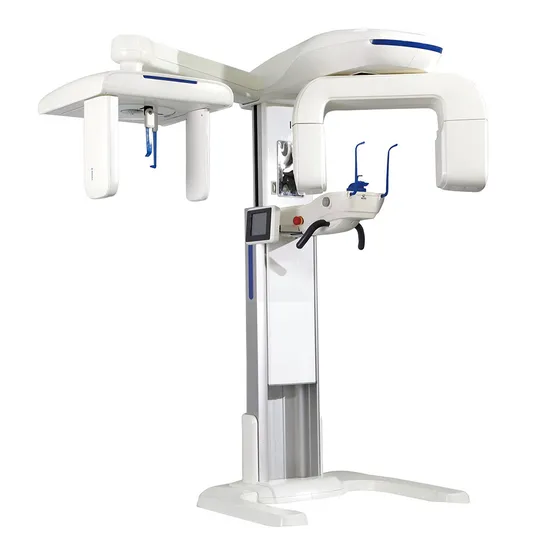

H-X9010D Pro 3D CBCT Digital Panoramic Dental X-ray Scan Machine
Presently cone beam CT is the most promising and revolutionary device of oral and skull imaging equipment. Its X-ray generator will move around the object for annular DR with low radiation, and after radiograph around the object for times (180°-360°), the jointed data will be reconstructed by the computer to get the 3D image. The application of CBCT has epoch-making meaning to oral health.
High Resolution Digital Image Chain
Digitalization mouth unit adopts unique HRBPR image reconstruction and WE image processing algorithm, and based on the super speed image reconstruction of CUDA technology, the NL-means image smoothing algorithm, and metal artifacts reduction algorithm etc, it provides the users 3D oral images with high resolution and high precision. Meanwhile, the applied pulse source technology can reduce the radiation level for patient and extend the lifetime of X-Ray tube.
Specialized 3D Diagnosis Software
The processing speed problem is solved by adopting advanced CUDA computing technology and the tomographic images will be generated after 10s.
After identify the metal area and reconstruct the image for second time, the metal artifacts will be reduced effectively through second reconstruction overlying.
The similarity of adjacent pixels is considered during image smoothing, which preserves the image details effectively at the same time.
The spin control precision of the system can reach 0.01° based on the high performance FPGA and 5 phase step motor.
The pulse X-Ray source and imaging flat panel can shutdown the X-ray synchronously within image reading time to reduce the radiation level.
Reliable Image Showing
Basic Parameters

Radiograph Mode	Digital Panorama, Corn Beam CT, Cephalometric Imaging
Anode Voltage	50-90KV
Anode Current	2- 10mA
Exposure Time(s)	Panorama: 17 CT: 20 (8 Effective Exposure 8 )
Image Dimension (FOV)(cm)	12x8
Pixel Size(mm)	0.45 , 0.33, 0.26, 0.19, 0. 07
Reconstruction Time(s)	< 60
Weight(Kg)	265

Specifications

	Panorama	CT	Part CT	Cephalometric
H-X9010D Pro 2D	*
H-X9010D Pro 2DE	*			*
H-X9010D Pro 3D	*	*	*
H-X9010D Pro 3DE	*	*	*	*

Company Profile

FAQ
1. What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
2. Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper.
3. What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
4. What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge.
5. What is payment terms?
T/T, Credit Card, L/C, Western Union, PayPal, MoneyGram.
