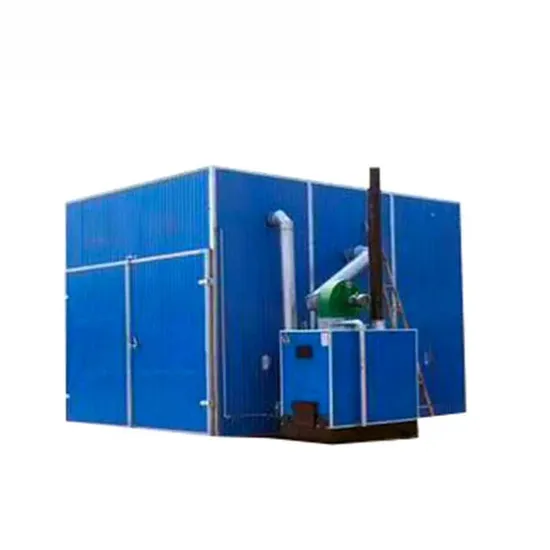

Factory Price Energy Saving and High Quality Wood Dry Kiln
Basic Info.
Model NO.
ZCM-30
Smokeless or Not
Yes
Structure
Horizontal
Automatic Exhaust Steam Raft
Material: Special Cast Iron.
Glass Tube
20mm, Length: 450mm.
Faucet
Material: Cast Steel Type.
Steam Valve
Material: Cast Iron Type.
AirTintake Duct
318mm. Material: All Steel Welded.
ReturnTair Duct
318mm. Material: All Steel Welded.
Recycle One
318mm. Material: All Steel Welded.
Transport Package
20 Gp
Specification
5000*2100*2100mm
Trademark
SAWMILL-WORLD
Origin
China
Production Capacity
1set/Month
Product Description
Product DescriptionWood Dry Kiln
30 cubic meter wood drying box configuration table (Forklift feeding) (Special for fuel oil) | |||||
| Body (ZCM-30) | |||||
| No. | Name | Description: Oil fired steam hot air boiler heating. | Quant ity | ||
| 1 | Box | Drying products: suitable for all kinds of wood drying and drying, as well as wood | 1 | ||
| sterilization, insecticide and wood heat | |||||
| treatment. | |||||
| Box headroom length: 6500mm, width: 4500mm, height: 4000mm. | |||||
| Material of drying box: the inner wall is all | |||||
| aluminum for anti-corrosion and high | |||||
| temperature resistance. The outer wall is color steel plate, and the middle insulation | |||||
| fiber cotton insulation. | |||||
| Heat Source System | |||||
| 1 | Boiler | 300,000 kcal: oil-fired steam hot air drying | 1 | ||
| boiler. | |||||
| Material is: special steel plate welded, 300000 kcal wood special hot air drying | |||||
| furnace (forced type, furnace outlet | |||||
| temperature 180°-200°, the main fuel is: | |||||
| fuel. | |||||
| Thermal insulation boiler material is: all steel boiler special steel plate). | |||||
| Furnace body steel plate wall | |||||
| thickness of 8cm, seamless steel pipe | |||||
| wall thickness of 10mm. | |||||
| 2 | Steam generator | Material: special Thickness: 8mm. | steel plate | welded. | 1 set |
| 3 | Chimney | Material: special steel plate welded. φ240mm, length: 6700mm, each section | 2 sectio | ||
| 3350mm. Diameter 280mm, wall thickness 2mm. | ns | ||
| 4 | Automatic exhaust steam raft | Material: special cast iron. | 1 |
| 5 | Glass tube | φ20mm, length: 450mm. | 2 |
| 6 | Add tank | 8.0mm thickness with 200L water capacity. Material: special steel plate welded. | A set |
| 7 | Faucet | Material: cast steel type. | 1 |
| 8 | Steam valve | Material: Cast iron type. | 1 |
| 9 10 | Watering bucket Oil burner | Material: steel plate type. Special for fuel. | 1 1 set |
| Pipeline system | |||
| 1 | Air intake duct | Φ318mm. Material: all steel welded. | 1 set |
| 2 | Return air duct | Φ318mm. Material: all steel welded. | 1 set |
| 3 | Recycle one | Φ318mm. Material: all steel welded. | 1 set |
| 4 | Bend | Φ318mm. Material: all steel welded. | 4 |
| 5 | Tuyere iron plate | Φ318mm. Material: all steel welded. | 1 set |
| 6 | Intake duct law blue | Φ318mm. Material: all steel welded. | 1 set |
| 7 | Return air duct French blue | Φ318mm. Material: all steel welded. | 1 set |
| 8 | Heat dissipation pipe in the box | Φ318mm. Material: all steel welded. | 1 set |
| Fan system | |||
| 1 | High temperatur e main fan | Power 4.00KW. Material: all carbon steel. Zibo high quality volute fan. | 1 set |
| 2 | High temperatur e and high humidity axial flow fan | Power 1.50KW. Material: all aluminum. Zibo high quality axial fan diameter 850 mm. | 3 sets |
| Prosecution system | |||
| 1 | Air outlet temperatur e gauge | Material: stainless steel, temperature at 300C. | 1 |
| 2 | Thermocou ple | Stainless steel. | 1 |
| 3 | Temperatur e gauge | Digital display. | 1 |
| 4 | Electric control cabinet | Full automatic control. Chint parts inside. The best domestic electrical parts. | A set |
| Tide drainage system | |||
| 1 | Drainage system | Material: All steel welded, thickness 2mm. φ240mm. | 1 set |
| 2 | Wire rope | Material: oil rope. | 1 set |
| 3 | Cock | The material is: full copper. | A set |
| 4 | Drain hole retractor | Material: steel, thickness 2mm. | 1 set |
| 5 | Drain hole support rod | Material: steel, thickness 2mm. | 1 set |
| 6 | Deflector | Material: All aluminum. | 1 set |
| 7 | Windshield | Material: All aluminum. | 1 set |
| 8 | Deflector skeleton | Material: All steel. | 1 set |
| 9 | Windshield skeleton | Material: All steel. | 1 set |
| Insulated door | |||
| 1 | Insulated door | Material of drying box: the inner wall is all aluminum for corrosion resistance and high temperature resistance. The outer wall is color steel plate, and the middle insulation | 1 set |
Why Choose Us
Packaging & Shipping
Our Company
Established in 1988, Sawmill-World is a professional manufacture that does its own research and development. We specialize in woodworking machinery like band saws, pallet machines, wood crushers,etc.. With over 50 employees and covering an area of 1400 square meters. Over the past 30 years, we have exported to over 70 countries including America, Mexico, Canada,India, Australia and many others. All machines in our factory have CE and ISO, and we can customize any machine certificate according to your needs. Most importantly, we can provide machine customization services and provide you with a complete product production line for one-stop procurement, with rich sales and export experience.
