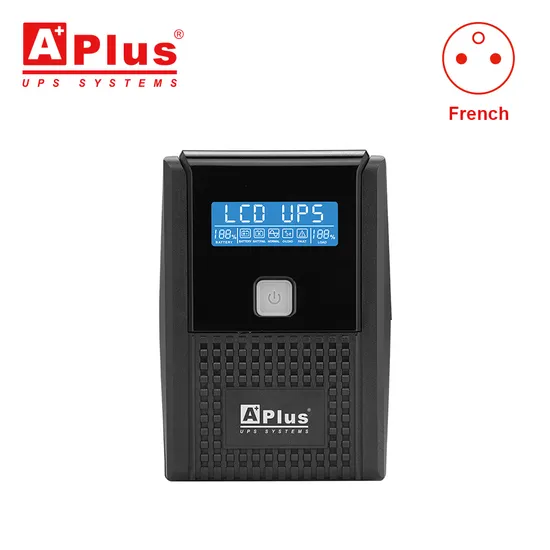

LCD Display 600va Offline UPS Battery Backup European Socket (French Socket)
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
Plus5L-600F
Protection
Overvoltage
Application
Communication
Classification
Lighting/Power
Standby Time
Long-acting Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Small Type
Equipment Mode
Centralized Model
Brand
Aplus Power
Function
UPS+AVR
Transport Package
Ocean Freight
Specification
600VA/360W
Origin
China
HS Code
8504402000
Production Capacity
2500 Pieces Per Day
Product Description
Specifications:| MODEL | Plus5L-600 |
| CAPACITY | 600VA/360W |
| INPUT | |
| Voltage Range | -30%, +25% |
| Frequency | 50Hz or 60Hz (Auto-sensing) |
| OUTPUT | |
| Voltage Regulation | +/-10% |
| Frequency | AC mode: 47-53Hz for 50Hz or 57-63Hz for 60Hz ; Battery mode: 50Hz or 60Hz +/-1Hz |
| Waveform | Simulated Sinewave |
| Transfer Time | <6ms (Typical) |
| BATTERY | |
| Type | Maintenance free sealed lead-acid battery |
| Voltage | 12VDC |
| Capacity & Number | 12V/7AH*1pc |
| Recharge Time | 5 hours to 90% after complete discharge |
| Safety Protection | Over Charge & Over Discharge Protection |
| Advanced Battery Management | Yes |
| DISPLAY | |
| LCD Status Indicators | Input voltage, Output voltage, Load level, Battery level, Fault, Battery fail, Overload, AC normal |
| AUDIBLE ALARM | |
| Battery Mode | Two short tones every 8 seconds |
| Low Battery | Four short tones every second |
| Overload | Beeping continuously |
| Fault | Beeping continuously |
| ENVIRONMENT | |
| Operating Temperature | 0°C-40°C (32°F-104°F) |
| Humidity | 0-95% (Non-condensing) |
| Acousitc Noise | <40dB at 1M |
| PHYSICAL | |
| Dimension (D*W*H) | 315.5*100*141mm |
Model Table:
| Model Name | Input Voltage | Outlet | Socket Type |
| Plus5L-600UN | 220/230Vac | EURO-US*4pcs Backup/AVR/Surge protected + 4pcs Surge protected only | EURO-US |
| Plus5L-600G | 220/230Vac | Schuko(Type F)*2pcs Backup/AVR/Surge protected | Schuko |
| Plus5L-600R4 | 220/230/240Vac | Universal*2pcs Backup/AVR/Surge protected | Universal |
| Plus5L-600UK | 220/230/240Vac | UK(Type G)*2pcs Backup/AVR/Surge protected | UK |
| Plus5L-600AU | 220/230/240Vac | Australian(Type I)*2pcs Backup/AVR/Surge protected | Australian |
| Plus5L-600IEC | 220/230Vac | IEC-320 C13*4pcs Backup/AVR/Surge protected | IEC-320 C13 |
| Plus5L-600F | 220/230Vac | French(Type E)*2pcs Backup/AVR/Surge protected | French |
| Plus5L-600SA | 220/230Vac | South Africa(Type M)*1pc+IEC-320 C13*1pc Backup/AVR/Surge protected | South Africa+IEC-320 C13 |
| Plus5L-600IT | 220/230Vac | Italian(Type L)*4pcs Backup/AVR/Surge protected | Italian |
