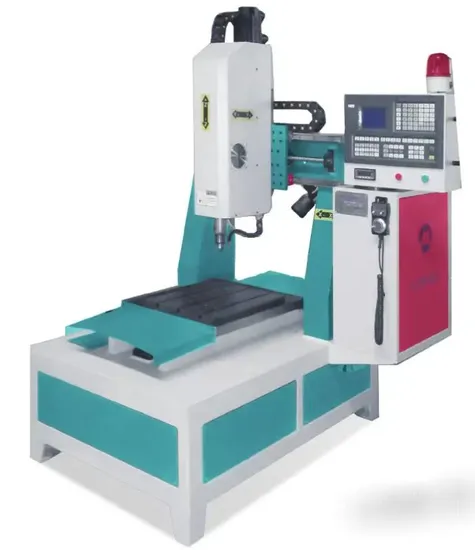

High Precision Flat Die Deep Hole Feed Mold Drilling Machine
| US$3,999.00-39,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MLT-P1080
Structure
Deep Hole Drilling
Layout
Vertical
Controlling Mode
CNC
Number of Shaft
3
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Model No.
Mlt-P1080
Table Size
850mmx1050mm
Scope of Drilling
1.0mm-16mm
Transport Package
Wooden Case
Specification
2100mmx1700mmx2400mm
Trademark
MLTOR
Origin
China
Production Capacity
30sets/Year
Product Description
Product DescriptionTechnical description1.The drilling depth of up to 150mm.2.Designed for processing hole diameter 0.5-6.0mm.3.High precision,high efficiency,high reliability.4.Any distribution of holes,only drawings,without programming.5.Input bit diameter,the pressure,speed,feed parameter automatically can be loaded.6.Three-axis CNC system,design for the mold features,with intelligent detection tool load,automatic processing of equidistant hole function.7.Simple operation,no programming,can be drilled in any form of flat die hole,including small block arrangement of holes.8.All holes are equilateral traingular arrangement to ensure the same wall thickness.9.Full servo motor control,processing more efficient,accurate positioning.10.Power off the automatic memory,no re-processing,reduce downtime.11.Overload protection(optional),due to other caused of machine load is too large can be timely downtime,to avoid unnecessary losses.
Detailed Photos
Product Parameters
| X,Y axis stroke | 800×1000mm |
| Axis Z travel range | 400mm |
| Scope of drilling | 1-16mm |
| Table size | 850×1050mm |
| The clamping way | T-type groove |
| Positioning accuracy | 0.02mm |
| Spindle speed | 0~3000RPM |
| Spindle power | 3KW |
| The control interface | Chinese/English |
| Machine floor space(L×W×H) | 2100×1700×2400mm |
| Host weight | 1500kg |
