Flour Power Roller Mill Drive Belts

Product Description

Roller Mill Belts
Avoid downtime with durable and dependable Flour Power belts for automated milling machines.
Production Features
Roller mill drive belts are typically dual sided. Most common, are belts with high torque synchronous teeth on one side and v-ribbed grooves on the other. Some are dual sided synchronous or dual sided v-ribbed belts. Flour Power specialty belts are designed for optimum performance and drive life while reducing maintenance and downtime. Features: High performance advanced polymer compound for long belt life Optimized tensile cord for strength and high torque loading Graphite impregnated fabric facing for improved wear resistance
Advantages: Jump and shear resistant belt teeth Efficient and consistent power transfer Heat, abrasion and wear resistant Flexible, vibration-free performanc Durable and dependable
Product specification
Market
Food processing industry
Application

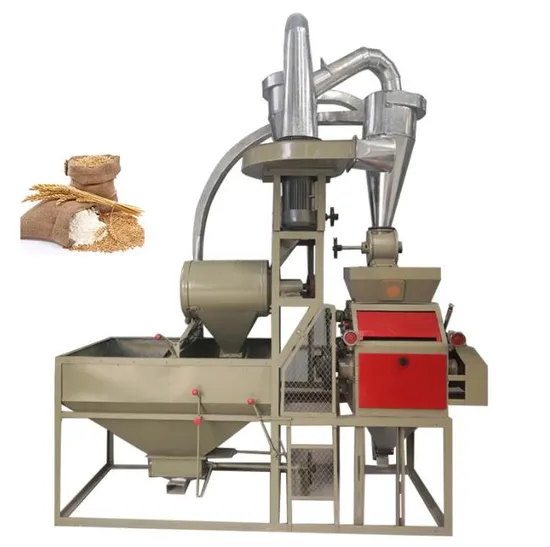

Flour roller mill machines
Roller milling is a process used to separate the parts of grain and then grind into flour
The rollers rotate at different speeds and in the opposite direction so that the material is sheared as it passes through the gap
Many flour mill machines use a belt with high torque synchronous teeth on one side and v-ribbed grooves on the other
Some machines require a belt that is v-ribbed or synchronous on both side
Flour Roller Mill Belts include HTD + PK , STD + PK , RPP + PK , Double Sided and Others below.
Flour Roller Mill Belts offer different number of ribs such as 12pk, 16pk, 17pk, 18pk, 20pk, 22pk, 24pk, 26pk, 28pk, 30pk, 32pk, 35pk, 36pk and 38pk, while custom sizes (lengths, widths, ribs and pitches) are available upon request. .
Flour Roller Mill Belts usually consist of neoprene body, fiberglass cord and nylon tooth facing, while custom materials available upon request. Special cords include aramid (kevlar), steel and carbon fiber.
Sizes
Available in 8M and 14M synchronous on one side and v-ribbed on the other
Dual sided synchronous and dual sided v-ribbed belts are also available
Part number examples:
1552-8M-PK12
1552-8M-PK16
1552-8M-PK32
1552-8M-PK36
1552-8M-PK38
1552-S8M-PK16
1552-S8M-PK30
1552-S8M-PK32
1760-8M-PK12
1760-8M-PK18
1760-8M-PK36
2400-8M-PK12
2400-8M-PK36
1778-14M-PK12
1765PVL22D
1765PVL26D
Other sizes available upon request
Matched Sets
Belts can be ordered in matched sets
Add a dash and the number of belts needed to the end of the part number
Part number explanation
1760-8M-PK12-3
1760 = pitch length in millimeters
8M = tooth pitch
PK = v-ribbed K profile
12 = number of ribs
3 = 3 matched belts
