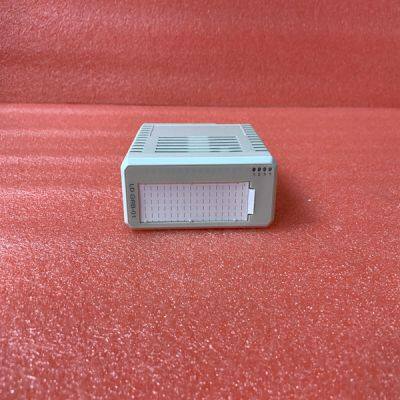

LDGRB-01 3BSE013177R1

Product Details

Product Description

Product Description
Brand:ABB
Type:LDGRB-01 3BSE013177R1
Origin: the Swiss
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Installing the Module in the Rack Make sure the processor and power supply are installed and configured before installing the MVI69E-MBS module. Refer to the Rockwell Automation product documentation for installation instructions. Warning: Please follow all safety instructions when installing this or any other electronic devices. Failure to follow safety procedures could result in damage to hardware or data, or even serious injury or death to personnel. Refer to the documentation for each device to be connected to verify that suitable safety procedures are in place before installing or servicing the device. After you verify the jumper placements, insert the MVI69E-MBS into the rack. Use the same technique recommended by Rockwell Automation to remove and install CompactLogix or MicroLogix 1500-LRP modules. Warning: This module is not hot-swappable! Always remove power from the rack before inserting or removing this module, or damage may result to the module, the processor, or other connected devices. 1 Align the module using the upper and lower tongue-and-groove slots with the adjacent module and slide forward in the direction of the arrow.
Move the module back along the tongue-and-groove slots until the bus connectors on the MVI69 module and the adjacent module line up with each other. MVI69E-MBS ♦ CompactLogix™ Platform Start Here Modbus Serial Enhanced Communication Module User Manual ProSoft Technology, Inc. Page 12 of 159 3 Push the module’s bus lever back slightly to clear the positioning tab and move it firmly to the left until it clicks. Ensure that it is locked firmly in place.Press the DIN-rail mounting area of the controller against the DIN-rail. The latches momentarily open and lock into place.
Configuring the Module in RSLogix To add the MVI69E-MBS module in Studio 5000, you must: 1 Create a new project in Studio 5000. 2 Add the module to the Studio 5000 project. There are two ways to do this: o You can use the Add-On Profile from ProSoft Technology. This is the preferred way, but requires RSLogix version 15 or later. o You can manually create the module using a generic 1769 profile, and then manually configure the module parameters. Use this method if you have RSLogix version 14 or earlier
