Factory Direct Sale UPVC Aluminum Profile Cutting Machine

Factory Direct Sale UPVC Aluminum Profile Cutting Machine

US$6,700.00-7,800.00 1 Set (MOQ)

Basic Info.

Model NO.
LJZ2-CNS-500*4200
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
not CNC
Voltage
380V
Model
Ljz2-Cns-500*4200(5000)
Input Voltage
380V 50Hz
Input Power
4.5kw
Air Pressure
0.5~0.8MPa
Air Consumption
200L/Min
Spindle Speed
3200r/Min
Cutting Length
360~4200mm(360~5000mm)
Cutting Width
10~130mm
Cutting Height
10~300mm
Cutting Angle
90 Deg; , 45 Deg; , 67.5 Deg;
Transport Package
Plastic Film or Depends on Demands
Specification
5500 * 1700 * 1600mm
Trademark
Yuefeng
Origin
Jinan Shandong, China
HS Code
8477800000
Production Capacity
30 Sets/Month

Product Description


>>>Jinan Yuefeng Machinery Co., Ltd founded in 1983, a professional manufacturer specialized in producing PVC and Aluminum win-door equipment, curtain wall equipment and insulating glass equipments, we are the foremost pioneet in the win-door industry.>>>Yuefeng has a fully equipped machining center and highly qualilfied technicians. With the year of effort and the support from all strata of the society, we are becoming stronger. It is specializing in developing and manufacturing PVC & aluminum window and doors machines, curtain-wall machines, insulating glass machines, and milling machines. It is the most powerful champion and promoter in the win-door industry. Our products exported to Middle East, Russia, South Africa, Vietnam, India, srilanka us, and South America etc., and deeply favored by the customers.>>>"Profession, factualism, enterprising, innovation" is the enterprise culture in the company; Strengthened quality certification system makes our products in the leading position in the industry.

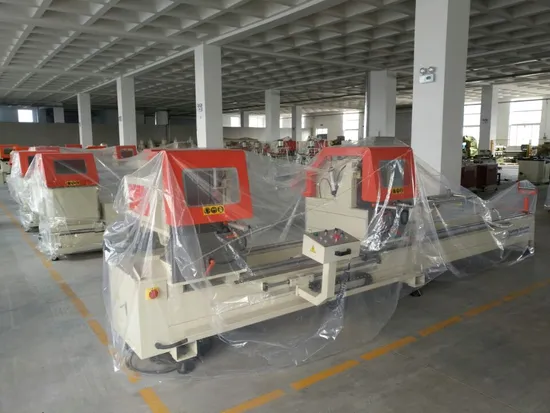

LJZ2-CNS-500×4200(5000) Digital Display Double Mitre Saw

>Used for cutting profiles such as aluminum profile and curtain wall.
>Touched screen and import controlling system adopted with high accuracy and smooth working.
>Two heads cutting angle 90°45°67.5°(22.5°) are available.
>Setting heights of profiles will show the lengths of cutting with different angles (90°, 45°, 67.5°) automatically.
>The system can store various of profiles, convenience and efficiency.
>Digital display system adopted, with high efficiency and accuracy.
Model LJZ2-CNS-500×4200(5000)
Input voltage 380V 50Hz
Input power 4.5Kw
Air pressure 0.5~0.8MPa
Air consumption 200L/min
Spindle speed 3200r/min
Cutting length 360~4200mm(360~5000mm)
Cutting width 10~130mm
Cutting height 10~300mm
Cutting angle 90° , 45° , 67.5°
Saw feeding speed 0~3m/min
Saw blade standard φ500×4.4×φ30×Z120
Overall dimension 5500(6300)×1700×1600mm


>>>.Glass Curtain Wall Machine.
>>>.Arc Bending Machine
>>>.Corner Crimping Machine
>>>.Glass Edging Machine
>>>.Glass washing Machine
>>>.Butyl Coating Machine
>>>.Two-component Extruder Machine
>>>.Insulating Glass Machine
>>>.End Milling Machine
>>>.Machining Center
>>>.Welding Machine
>>>.Cutting Machine
>>>.Insulating Glass Solution
>>>.Aluminum Window and Door Solution
>>>.Upvc Window and Door Solution
MORE>>>


MORE>>>

Q.Are your company a trading one or a factory?
A:Factory + trade (integration), 35 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating
glass equipment and curtain wall equipment.
Q.After an order is placed, when to deliver?
A: Generally about 15 days, If we have inventory, we can arrange shipment within 5 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q.What about the warranty with after - sales services?
A: 12 months warranty. Besides,we can help you to solve your problem freely;
After the warranty,the professional after-sale service team will provide perfect technical support,and help customers solve problems ,encountered while using our products.Handles guest problems and complaints in a professional and timely.
A.What about the services and product' quality?
A: Each machine must be carried out 100% quality examination and test before shipment.
And all machines meet ISO and CE certification.
Q. We don't know the machine operation, what should we do?
A:We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
Q: Can the voltage of the machine be adapted?
A: We can adapt the machine to your needs to match your local voltage.
Q: Do you have an operation manual with the machine?
A: Yes, of course, it is in the English version.
Q: Can you offer us the necessary paper to do the customs clearance?
A: Yes, we will send you the commercial invoice, packing list, bill of lading and we'll also meet your other request.
Q: How about the packing?
A: Outside Package: Wooden packing crate as export standard; Inside Package: Stretch film.
